LED light module HM164-HE-4 series

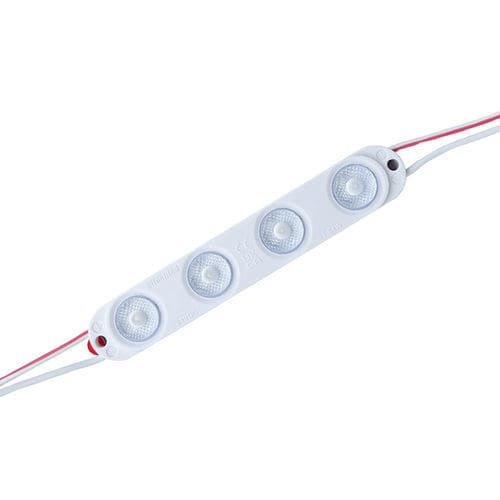

LED light module - HM164-HE-4 series - HITECHLED SRL
LED light module - HM164-HE-4 series - HITECHLED SRL
Add to favorites
Compare this product

Characteristics

Options
LED

Description

Overview
  • LED module for illuminated shallow boxes and signage, 24 VDC input.
  • Power consumption: 1.64 W, 4 LEDs per module.
  • Optical efficiency: 150 Lm/W; luminous flux 268 Lm (HM164-HE-4W24, 7000 K).
  • Prismatic lens with 160° viewing angle for uniform light diffusion.
  • Suitable for box depths from 60 mm to 300 mm.
  • 3M VHB adhesive with pull tab for faster protective film removal (reduces application time by ~30%).


Available models
Model | Color | CCT | Luminous flux | Voltage | Power
HM164-HE-4W24 | White | 7000 K | 268 Lm | 24 VDC | 1.64 W

Technical specifications
  • Power: 1.64 W
  • LEDs: 4 pcs
  • Rated voltage: 24 VDC
  • Luminous flux: 268 Lm (HM164-HE-4W24)
  • Optics: Prismatic lens, 160° viewing angle
  • Optical efficiency: 150 Lm/W
  • CCT example (HM164-HE-4W24): 7000 K
  • Suitable box depths: 60 mm to 300 mm
  • Adhesive: 3M VHB with tab for quick protective film removal (reduces application time by ~30%)


Recommended applications
  • Illuminated shallow sign boxes and channel letters
  • Retail signage, interior luminaires for commercial displays
  • Replacement or retrofit in existing 24 VDC signage systems


Installation and handling
  • Peel-off tab on 3M VHB speeds mounting and reduces labor time.
  • Ensure clean, dry, degreased surfaces before adhesion for optimal bond.
  • Mount with adequate spacing and wiring to maintain uniform illumination and allow heat dissipation.
