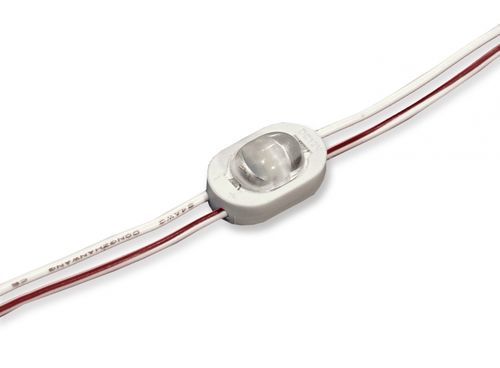

LED light module HM30M-1 series

Product overview
Micro LED module for channel letters and luminous profiles. Single LED, 0.3 W module with an oval lens providing an elliptical light distribution (viewing angle 140° x 170°). Compact dimensions and controlled diffusion make it suitable for profiles with a recommended thickness of 30 mm to 80 mm. High-bond 3M VHB adhesive with a removable protection-film tab enables fast and secure installation.

Key features

• Dimension: 17 x 11 mm.
• Modules per chain: 70 pcs.
• Fixing: 3M VHB adhesive.
• Consistent white light: < 3 SDCM.
• Protection class: IP66 / IP67.
• Modules per packaging: 140 pcs.

Available models (table)
Model | Color | CCT / λd | Luminous flux | Voltage | Power
HM30M-1CW12 | Cool white | 8000 K | 33 lm | 12 VDC | 0.3 W
HM30M-1W12 | White | 6500 K | 32 lm | 12 VDC | 0.3 W
HM30M-1NW12 | Natural white | 4000 K | 32 lm | 12 VDC | 0.3 W
HM30M-1WW12 | Warm white | 3000 K | 29 lm | 12 VDC | 0.3 W
HM30M-1G12 | Green | 520/530 nm | 18 lm | 12 VDC | 0.3 W
HM30M-1B12 | Blue | 460/470 nm | 6 lm | 12 VDC | 0.3 W

Technical specifications

• Power (per module): 0.3 W.
• Single LED module.
• Operating voltage: 12 V DC.
• Lens: Oval, viewing angle 140° x 170°, elliptical distribution.
• Dimensions: 17 x 11 mm.
• Color consistency: < 3 SDCM.
• Ingress protection: IP66 / IP67.
• Fixing/Adhesive: 3M VHB (with removable protection-film tab).
• Recommended mounting thickness: 30 mm – 80 mm.
• Modules per chain: 70 pcs; Modules per packaging: 140 pcs.
