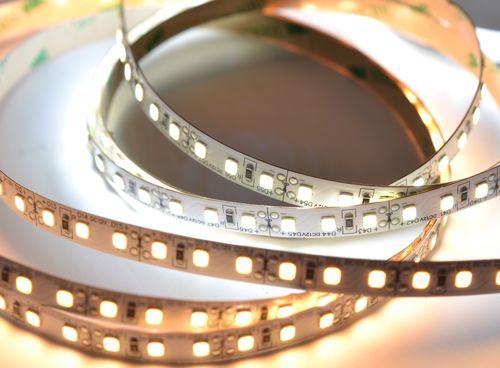

Strip lighting HS9-120-12

LEDIP30

Product description
Flexible LED strip for linear, architectural and decorative lighting applications. Available in three colour temperature options and two protection levels (IP30 and IP52). McAdam 3-step colour consistency ensures homogeneous light output along the entire length.

Features

• Fixing: 3M adhesive
• Subdivision: 25 mm
• Ends: wires on both ends
• Voltage: 12 VDC
• LED density: 120 LEDs/m
• Power: 9.6 W/m
• Standard length: 5 m
• Protection: IP30 (standard) and IP52 (dropped silicone)

Available models
Model | Color | Protection | CCT | Luminous flux
HS9N-120W1 | White | IP30 | 6000/6500 K | 980 lm/m
HS9N-120NW12 | Natural white | IP30 | 4000/6500 K | 980 lm/m
HS9N-120WW12 | Warm white | IP30 | 2700/3200 K | 940 lm/m
HS9S-120W12 | White | IP52 (dropped silicone) | 6000/6500 K | 980 lm/m
HS9S-120NW12 | Natural white | IP52 (dropped silicone) | 4000/6500 K | 980 lm/m
HS9S-120WW12 | Warm white | IP52 (dropped silicone) | 2700/3200 K | 940 lm/m

Technical specifications

• Fixing: 3M adhesive
• Subdivision: 25 mm
• Ends: wires on both ends
• Voltage: 12 VDC
• LED density: 120 LEDs/m
• Power: 9.6 W/m
• Standard length: 5 m
• Protection: IP30 (standard) and IP52 (dropped silicone)
• Colour temperatures: White (6000–6500 K), Natural white (≈4000 K), Warm white (2700–3200 K)
• Colour consistency: McAdam 3-step (very narrow colour selection)
• Recommended applications: linear lighting, architectural lighting, decorative lighting
