Strip lighting HS17-168-24

LEDIP30

Product overview

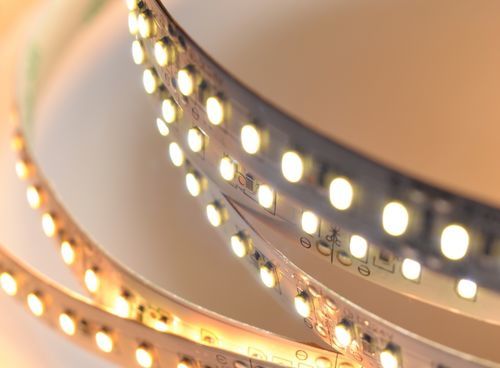

High-brightness flexible LED strip designed for general lighting applications and decorative luminous lines. HS17 is very thin, subdivisible every 35.7 mm and available with protection levels IP30 and IP52 (dropped silicone). Ideal for linear accent lighting, cove lighting and display illumination.

Features

• Fixing: 3M adhesive
• Subdivision: 35.7 mm
• Ends: Wires on both ends
• Voltage: 24VDC
• LED per meter: 168
• Power per meter: 17 W/m
• Length: 5 m

Available models / Performance
HS17N-168W24 — White — IP30 — 6000/6500 K — 1700 Lm/m
HS17N-168NW24 — Natural white — IP30 — 4000/4500 K — 1700 Lm/m
HS17N-168WW24 — Warm white — IP30 — 2700/3200 K — 1670 Lm/m
HS17S-168W24 — White — IP52 Dropped silicone — 6000/6500 K — 1700 Lm/m
HS17S-168NW24 — Natural white — IP52 Dropped silicone — 4000/4500 K — 1700 Lm/m
HS17S-168WW24 — Warm white — IP52 Dropped silicone — 2700/3200 K — 1670 Lm/m

Characteristics / Technical specifications

• Protection levels: IP30, IP52 (dropped silicone)
• Subdivision: 35.7 mm
• Fixing: 3M adhesive
• Ends: Wires on both ends
• Voltage: 24VDC
• LED density: 168 LED/m
• Power: 17 W/m
• Length: 5 m
• Luminous flux: up to 1700 Lm/m (depending on model and CCT)
