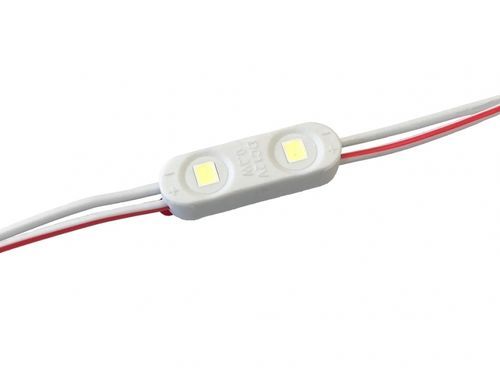

LED light module HM30M-2 series

Product description
Micro LED module for channel letters and luminous profiles. The slim, elongated shape makes this module suitable for channel letters and narrow luminous profiles. The adhesive backing includes a pull tab to facilitate removal of the protective film, enabling quick and safe installation.

Main features

• Dimension: 23.5 x 7.4 mm
• Modules per chain: 50 pcs
• Fixing: 3M VHB Adhesive
• Consistent white light: < 3 SDCM
• Protection class: IP55
• Modules per packaging: 100 pcs

Available models
Model | Color | CCT/ λd | Luminous flux | Voltage | Power
HM30M-2CW12 | Cool white | 8000 K | 33 Lm | 12 VDC | 0.3 W

Characteristics / Technical specifications

• Shape: slim and elongated, suitable for channel letters and luminous profiles
• Adhesive with pull tab for quick removal of the protective film and secure installation
• Dimension: 23.5 x 7.4 mm
• Fixing: 3M VHB Adhesive
• Color consistency: < 3 SDCM
• Protection rating: IP55
• Modules per chain: 50 pcs
• Modules per packaging: 100 pcs
• Available model HM30M-2CW12: Cool white 8000 K, 33 Lm, 12 VDC, 0.3 W
