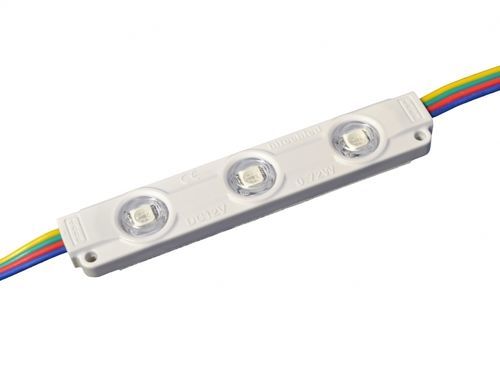

LED light module HM3RGB

Overview
RGB LED module for signage backlighting and decorative lighting. Transparent polycarbonate cover protects LEDs while allowing uniform light distribution. Compatible with HC100RGB programmer to produce dynamic lighting effects. 3M VHB adhesive with removable tab enables quick and secure mounting.

Key features

• Dimensions: 92 x 17 mm
• Modules per chain: 30 pcs
• Fixing: 3M VHB adhesive with pull-tab
• Color control: RGB; compatible with HC100RGB programmer
• Consistent white light: < 3 SDCM
• Protection class: IP65
• Packaging: 60 modules per pack
• Polarity: B, R, G negative; common (yellow wire) positive

Electrical specifications

• Voltage: 12 VDC (example model HM51A-3RGB12)
• Power: 0.72 W (HM51A-3RGB12 and HM3RGB)
• Single-color luminous flux (example HM51A-3RGB12): R 12 lm; G 20 lm; B 8 lm

Installation & compatibility

• Transparent polycarbonate cover provides protection and light diffusion
• 3M VHB adhesive with tab for easy removal of protection film and fast mounting on clean, dry surfaces
• Connect to HC100RGB programmer for color and effect control
• Observe polarity when wiring: common (yellow) = positive

Applications & ordering

• Primary applications: sign and channel backlighting, decorative illumination
• Also suitable for display backlighting and architectural accent lighting
• Available model example: HM51A-3RGB12 (12 VDC)
• Packaging: 60 modules per pack; chainable up to 30 modules
