White LED HB35LA seriesstripscrew-insurface-mount
Add to favorites
Compare this product
Characteristics
- Spectrum
- white
- Configuration
- strip
- Mounting
- screw-in, surface-mount, plug-in
- Other characteristics
- backlighting
- Product applications
- for displays, for lighting
- Electrical power
Min.: 7.8 W
(0.010605 hp)Max.: 15.5 W
(0.021074 hp)
Description
Overview

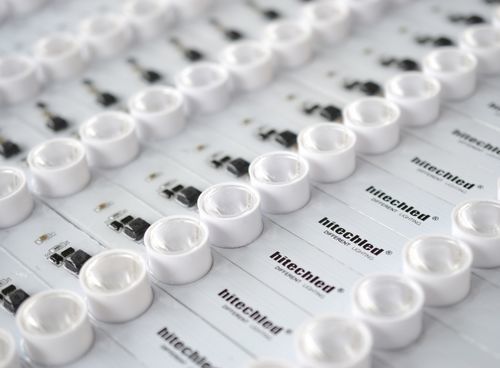

LED bars for double-sided signage. The HB35LA series includes two models equipped with exclusive optics for perimeter lighting: a 6-LED version and a 3-LED version. These bars are intended for perimeter illumination of tensioned textile or plexiglass lightboxes and provide uniform edge lighting for double-sided displays.
Features
Available models
Model | Color | CCT | Luminous flux | Voltage | Power
HB35LA-6W24-S | White | 6500 K | 1638 lm | 24 VDC | 15.5 W
HB35LA-3W24-S | White | 6500 K | 819 lm | 24 VDC | 7.8 W
Technical specifications
LED bars for double-sided signage. The HB35LA series includes two models equipped with exclusive optics for perimeter lighting: a 6-LED version and a 3-LED version. These bars are intended for perimeter illumination of tensioned textile or plexiglass lightboxes and provide uniform edge lighting for double-sided displays.
Features
- Fixing: thermal adhesive and screw holes
- Connection: cables with connectors on both ends
- Voltage: 24 VDC
- Power: 15.5 W and 7.8 W
- Lightbox thickness: from 100 to 170 mm
Available models
Model | Color | CCT | Luminous flux | Voltage | Power
HB35LA-6W24-S | White | 6500 K | 1638 lm | 24 VDC | 15.5 W
HB35LA-3W24-S | White | 6500 K | 819 lm | 24 VDC | 7.8 W
Technical specifications
- Series: HB35LA
- Models: HB35LA-6W24-S and HB35LA-3W24-S
- Optics: exclusive optics for perimeter lighting of lightboxes
- Intended use: perimeter lighting for tensioned textile or plexiglass lightboxes
- Fixing: thermal adhesive and screw holes
- Connection: cables with connectors on both ends
- Nominal voltage: 24 VDC
- Power consumption: 15.5 W (HB35LA-6W24-S) and 7.8 W (HB35LA-3W24-S)
- Lightbox thickness compatibility: from 100 to 170 mm
- Color temperature (CCT): 6500 K
- Luminous flux: 1638 lm (HB35LA-6W24-S), 819 lm (HB35LA-3W24-S)
