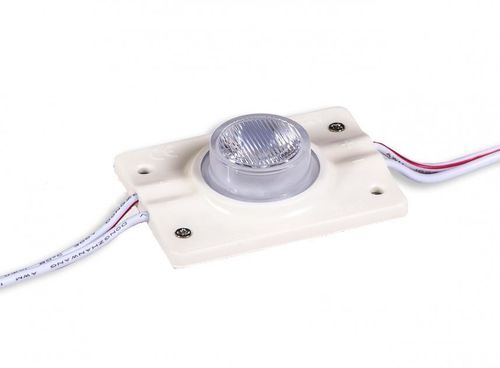

LED light module HM35LADPN

Product description
LED module designed for double-sided signage and light boxes. Narrow-beam lens (52° x 12°) provides optimized internal reflected illumination of both faces. Recommended lightbox thickness: 100 mm to 200 mm. Thermal adhesive enables fast, safe pre-installation; final mechanical fixing with screws is strongly recommended to ensure long-term stability.

Key points

• Dimensions: 54 x 41 x 14.8 mm
• Modules per chain: 20 pcs
• Fixing: 3M VHB adhesive (pre-installation) — screw fixing recommended
• Ingress protection: IP65
• Modules per packaging: 40 pcs

Available Models (table)
Model | Color | CCT | Luminous flux | Voltage | Power
HM35LADPN-1W12 | White | 6500 K | 244 Lm | 12 VDC | 2.8 W

Technical specifications

• Model designation: HM35LADPN (main product)
• Application: LED module for double-sided signage / light boxes
• Optics: Narrow-beam lens 52° x 12° for optimal internal reflected illumination of both sides
• Recommended lightbox thickness: 100–200 mm
• Mounting: thermal adhesive for quick pre-installation; final fixing with screws recommended
• Dimensions: 54 x 41 x 14.8 mm
• Modules per chain: 20 pieces
• Modules per packaging: 40 pieces
• Fixing accessory: 3M VHB adhesive
• Ingress protection: IP65
• Available variant: HM35LADPN-1W12 — Color: White; CCT: 6500 K; Luminous flux: 244 Lm; Voltage: 12 VDC; Power: 2.8 W
