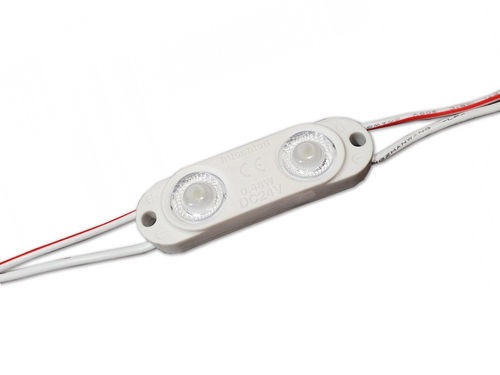

LED light module HM48-HE-2

Product description
LED module 24 V designed for linear illumination in industrial and architectural applications. High efficiency: 150 lm/W. Prismatic lens with 160° viewing angle for uniform light diffusion. Recommended installation thickness: 50 mm to 150 mm. High-quality adhesive 3M VHB with tab for easy removal of the protection film enables fast and secure installation.

Key features

• Dimension: 47 x 14 mm
• Modules per chain: 100 pcs
• Fixing: 3M VHB adhesive
• Consistent white light: < 3 SDCM
• Protection class: IP66/IP67
• Modules per packaging: 100 pcs

Available models (table)
Model | Color | CCT | Luminous flux | Voltage | Power
HM48-HE-2W12 | White | 7000 K | 72 lm | 24 VDC | 0.48 W

Technical specifications

• Efficiency: 150 lm/W
• Lens: prismatic lens with 160° viewing angle
• Recommended installation thickness: 50 mm – 150 mm
• Dimension: 47 x 14 mm
• Voltage: 24 VDC
• Power: 0.48 W
• Luminous flux: 72 lm (for HM48-HE-2W12)
• Correlated Color Temperature (example model HM48-HE-2W12): 7000 K
• Color consistency: < 3 SDCM
• Protection class: IP66/IP67
• Fixing / Adhesive: 3M VHB with tab for easy removal of protection film
• Modules per chain: 100 pcs
• Modules per packaging: 100 pcs
