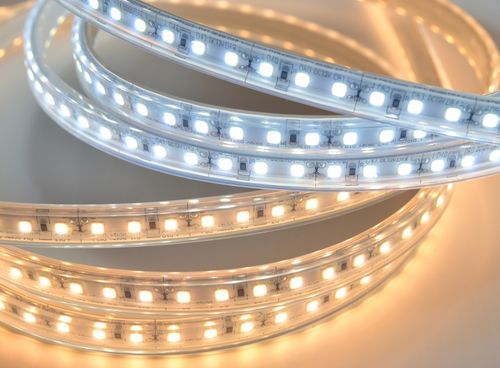

Strip lighting HS9E-120-12

with flexible LED stripIP67

Product description
Flexible LED strip in silicone extrusion, designed for linear lighting as well as architectural and decorative luminous applications. Anti-yellowing silicone extrusion and very narrow color selection (McAdam’s 3 STEP) ensure consistent white appearance across lengths. Available in three white CCT ranges and supplied with silicone end caps.

Features

• Fixing: 3M adhesive tape
• Subdivision (cutting pitch): 25 mm
• Ends: Silicone caps included
• Voltage: 12 V DC
• LED density: 120 LEDs/m
• Power consumption: 9.6 W/m
• Standard length: 5 m

Available models (table)
Model | Color | Protection | CCT | Luminous flux
HS9E-120W12 | White | IP67 | 6000/6500 K | 980 lm/m
HS9E-120NW12 | Natural white | IP67 | 4000/4500 K | 980 lm/m
HS9E-120WW12 | Warm white | IP67 | 2700/3200 K | 940 lm/m

Technical specifications

• Construction: Silicone extrusion with anti‑yellowing properties
• Application: Linear, architectural and decorative luminous applications
• Color consistency: McAdam’s 3 STEP (very narrow selection)
• Fixing system: 3M adhesive tape
• Subdivision (cutting pitch): 25 mm
• End caps: Silicone end caps included
• Nominal voltage: 12 V DC
• LED density: 120 LEDs/m
• Power consumption: 9.6 W/m
• Standard length: 5 m
• Protection rating: IP67 (for listed models)
• Available CCT options: 2700/3200 K (warm), 4000/4500 K (natural), 6000/6500 K (cool)
• Luminous flux (per meter): approx. 940–980 lm/m depending on CCT
