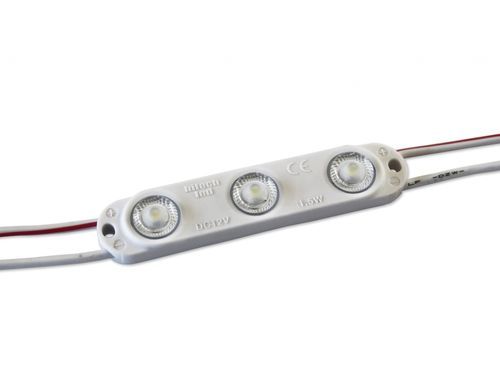

LED light module HM150-3

Product description
LED module for large-format signage backlighting. Prismatic lens with a 165° viewing angle provides wide, uniform light diffusion across thick panels. Recommended panel thickness: 120–200 mm. 3M VHB adhesive with a pull tab for protection-film removal enables fast and secure mounting. Modules operate at 12 VDC and are suitable for chain configurations.

Features

• Prismatic lens with 165° viewing angle for uniform light diffusion
• 3M VHB adhesive with pull tab for easy removal of protection film
• Designed for large-format signage backlighting and chain mounting

Available Models
Model | Color | CCT | Luminous flux | Voltage | Power
HM150-3CW12 | Cool white | 8000 K | 159 lm | 12 VDC | 1.5 W
HM150-3W12 | White | 6500 K | 159 lm | 12 VDC | 1.5 W

Technical specifications

• Dimension: 70 x 14 mm
• Modules per chain: 40 pcs
• Fixing: 3M VHB adhesive with pull tab
• Consistent white light: < 3 SDCM
• Protection class: IP66/IP67
• Modules per packaging: 80 pcs
• Lens viewing angle: 165°
• Recommended panel thickness: 120–200 mm
• Typical luminous flux (per module): 159 lm
• Operating voltage: 12 VDC
• Power consumption (per module): 1.5 W

Applications & installation

• Suitable for lightboxes, channel letters, illuminated signs and other large-format displays
• Install in chain runs up to recommended number of modules; ensure compatible 12 VDC power supply
• Clean and dry the mounting surface before applying 3M VHB adhesive; use the pull tab to remove protection film
