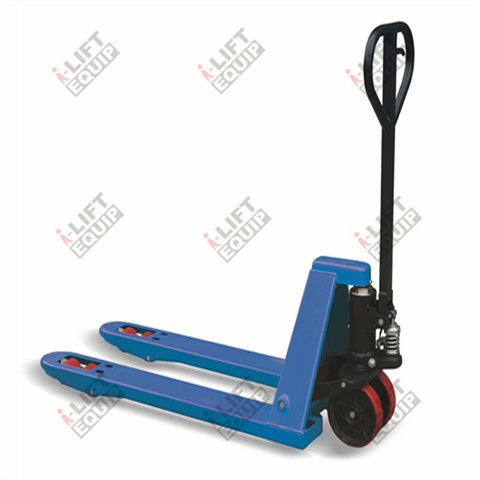

Hand pallet truck BH series

short-forklong-forkfor industrial applications

Product Overview

• Durable manual pallet truck series designed for frequent use in industrial environments.
• Heavy-duty pump with double-seal design for extended service life; quick, easy-change cassette valve system with overload protection.
• Ergonomic handle engineered for comfortable operation in varying temperatures and increased lift per stroke.
• Reinforced fork design providing approximately 25% greater strength than standard forks for demanding conditions.
• Adjustable push rod allows easy adjustment without turning the truck.
• Self-lubricating bearings to extend service intervals and simplify maintenance.
• Additional entry and exit rollers to facilitate pallet entry/exit and protect load wheels.
• Conforms to EN1757-2.

Models & Dimensions
i-LIFT NO. | Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm(in.) | Fork Length mm(in.) | Overall Forks Width mm(in.)
1110401 | BH20S | 2000 (4400) | 85 or 75 (3.3 or 3) | 205 or 195 (8.1 or 7.7) | 1150 (45.3) | 530 (20.9)
1110402 | BH20L | 2000 (4400) | 85 or 75 (3.3 or 3) | 205 or 195 (8.1 or 7.7) | 1220 (48) | 685 (27)
1110403 | BH25S | 2500 (5500) | 85 or 75 (3.3 or 3) | 205 or 195 (8.1 or 7.7) | 1150 (45.3) | 530 (20.9)
1110404 | BH25L | 2500 (5500) | 85 or 75 (3.3 or 3) | 205 or 195 (8.1 or 7.7) | 1220 (48) | 685 (27)

Technical specifications

• Series: BH SERIES
• Conforms to: EN1757-2
• Pump: Heavy-duty pump with double seals; quick, easy-change cassette valve system with overload protection
• Handle: Ergonomic design for comfortable operation in all temperatures and increased lift per stroke
• Fork: Reinforced fork design offering approximately 25% more strength than standard forks
• Push rod: Adjustable without turning the truck
• Bearings: Self-lubricating bearings for extended life and easier repair
• Entry/exit rollers: Additional rollers to ease pallet entry/exit and protect load wheels
• Available model numbers: BH20S, BH20L, BH25S, BH25L
• Capacities: 2000 kg (4400 lb) and 2500 kg (5500 lb)
• Fork lengths: 1150 mm (45.3 in) and 1220 mm (48 in)
• Overall fork widths: 530 mm (20.9 in) and 685 mm (27 in)
• Min. fork height: 85 or 75 mm (3.3 or 3 in)
• Max. fork height: 205 or 195 mm (8.1 or 7.7 in)
