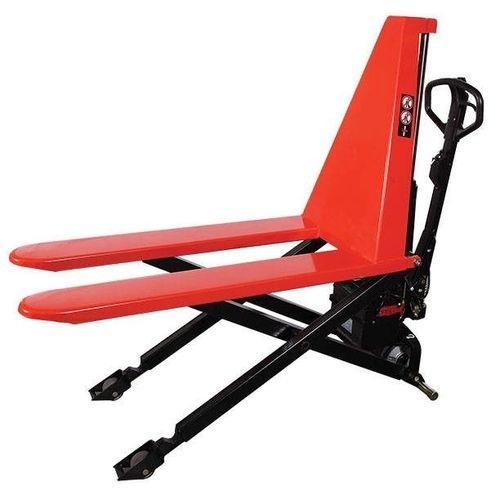

Electric pallet truck HB series

battery-powered12 Vhigh-lift

Product Overview
The HB‑Series electric high‑lift scissor pallet truck enables rapid lifting and transport of pallets and loads up to 1,000 kg with a maximum fork lift height of 800 mm. Electric lifting and manual lowering provide precise load control. The compact integrated motor block and maintenance‑free battery include a built‑in charger and an external charger socket for extended operation. Safety and durability features include rear stabilizing bars, wide caster stabilizers, a reinforced frame, an anti‑crush system and a protected hydraulic circuit. Operator controls include an ergonomic handle, battery discharge indicator and key starter.

Key Features

• Load capacity: 1,000 kg (2,200 lb)
• Maximum lift height: 800 mm (31.5 in)
• Electric lift / manual lowering
• Compact integrated motor block
• Built‑in charger (6 Ah / 12 V) and external charger socket (12 V / 72 Ah)
• Maintenance‑free integrated battery
• Ergonomic handle and key starter
• Battery discharge indicator
• German pump seals and protected hydraulic system
• Reinforced frame, anti‑crush system, rear stabilizing bars
• Wide caster stabilizers; manual operation possible

Models and Specifications
i‑LIFT NO. | Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm(in.) | Fork Length mm(in.) | Overall Forks Width mm(in.)
- HB1068EN | HB1068EN | 1000 (2200) | 85 (3.3) | 800 (31.5) | 1190 | 685
- HB1056EN2000 | HB1056EN2000 | 1000 (2200) | 85 (3.3) | 800 (31.5) | 2000 | 540
- HB1056EN1800 | HB1056EN1800 | 1000 (2200) | 85 (3.3) | 800 (31.5) | 1800 | 540
- HB1056EN1500 | HB1056EN1500 | 1000 (2200) | 85 (3.3) | 800 (31.5) | 1500 | 540
- HB1056EN | HB1056EN | 1000 (2200) | 85 (3.3) | 800 (31.5) | 1190 | 540

Options

• Alternative fork lengths available (including 800 mm option)

Technical specifications

• Rated capacity: 1,000 kg (2,200 lb)
• Maximum lift height: 800 mm (31.5 in)
• Minimum fork height: 85 mm (3.3 in)
• Standard fork length: 1,190 mm (other lengths available per model)
• Forks width: 540 mm or 685 mm depending on model
• Example truck weight: 159 kg
• Built‑in charger: 6 Ah / 12 V; external charger socket: 12 V / 72 Ah
• Power source: maintenance‑free integrated battery
• Lifting: electric; Lowering: manual
• Hydraulic: protected system with German pump seals
• Safety: rear stabilizers, wide caster stabilizers, reinforced frame, anti‑crush system
• Operator controls: ergonomic handle, battery indicator, key starter
