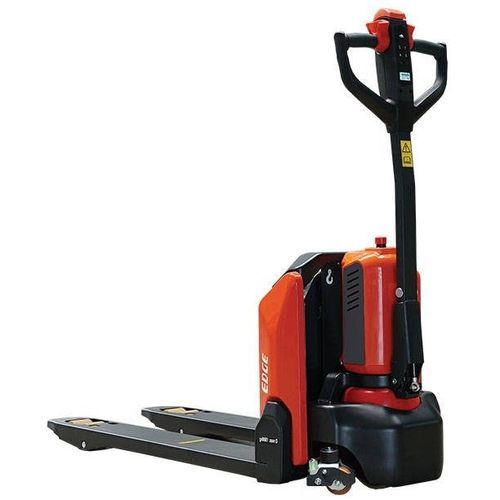

Electric pallet truck PTE20N series

lithium battery-poweredbattery-powered48 V

Overview

• PTE20N lithium powered pallet truck designed for pedestrian operation (walkie)
• PTE20N “EDGE” is the 2 metric ton version of PTE15N
• Market-leading lithium‑ion electric pallet truck series with proven sales performance
• Available fork widths: 540 mm or 680 mm
• Compact design with low ground clearance suitable for confined spaces
• Ergonomic handle with LCD display and PIN-code start-up
• Air spring on the tiller bar for smoother control and reduced operator fatigue
• Slow speed (turtle) mode for safer turning and close‑quarters maneuvers
• Maintenance-free 48 V / 20 Ah lithium‑ion battery with easy access for quick replacement
• Battery designed to withstand 1.5 m drop and to recharge in 2.5 hours
• Standard stabilizing rollers and CAN‑BUS Curtis controls
• Travel speed (with / without load): 4.8 / 5.2 km/h
• Gradeability (with / without load): 7 % / 16 %
• Options: extra 48 V / 20 Ah battery; belt wheels

Models (table)
i-LIFT NO. | Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm(in.) | Load Center mm(in.) | Wheelbase mm(in.)
PTE20N-2000 | PTE20N-2000 | 1200 | 80 | 1160 | |
PTE20N-1800 | PTE20N-1800 | 1500 | 80 | 1160 | |
PTE20NL | PTE20NL | 2000 | 80 | 1160 | |
PTE20N | PTE20N | 2000 | 80 | 1160 | |

Technical specifications

• Series: PTE20N (2 metric ton version of PTE15N)
• Fork dimensions: 47 / 160 / 1150 mm
• Fork width options: 540 mm or 680 mm
• Ground clearance: 33 mm
• Turning radius: 1336 mm
• Total weight (including battery): 149 kg or 153 kg depending on model
• Battery: maintenance‑free 48 V / 20 Ah lithium‑ion (standard)
• Battery features: easy access, designed to withstand 1.5 m drop, recharge time 2.5 h
• Standard equipment: stabilizing rollers
• Controls: Curtis controllers and throttle; CAN‑BUS technology
• Handle: ergonomic with LCD display and PIN‑code start; air spring on tiller bar; steering handle vertical position
• Drive type: electric walkie pallet truck
• Travel speed (with / without load): 4.8 / 5.2 km/h
• Gradeability (with / without load): 7 % / 16 %
• Customization: chassis color can be customized
• Ergonomics: designed to help reduce work‑related musculoskeletal disorders (MSD)
• Options: extra 48 V / 20 Ah battery; belt wheels
