Hydraulic pallet truck SP series
handlong-forkshort-fork

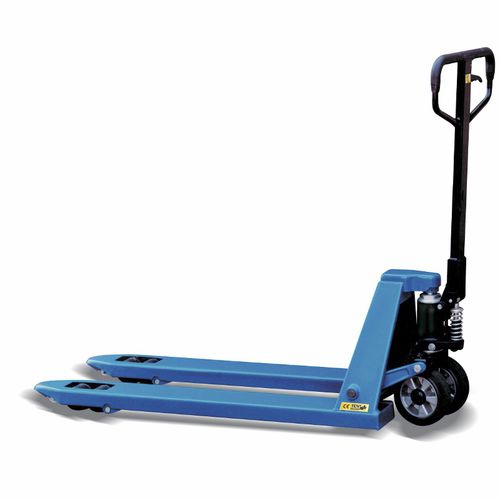

Hydraulic pallet truck - SP series - i-lift Equipment Ltd. - hand / long-fork / short-fork
Hydraulic pallet truck - SP series - i-lift Equipment Ltd. - hand / long-fork / short-fork
Add to favorites
Compare this product
Go to the i-lift Equipment Ltd. website for more information

Characteristics

Operation
hydraulic, hand
Other characteristics
long-fork, short-fork
Load

Min.: 2,000 kg
(4,409.25 lb)

Max.: 3,000 kg
(6,613.87 lb)

Lifting height

Min.: 7.5 cm
(3 in)

Max.: 20 cm
(7.9 in)

Fork length

Min.: 115 cm
(45.28 in)

Max.: 122 cm
(48.03 in)

Fork width

Min.: 55 cm
(21.7 in)

Max.: 68.5 cm
(27 in)

Description

Product overview
  • Heavy-duty design with top-quality pump.
  • Durable hydraulic pump: latest European technology in a self-contained unit; seal kits manufactured in Germany.
  • Central fingertip controls: three-position control lever provides fingertip control of all hydraulic functions with the handle in any position; neutral position releases the handle from hydraulic functions.
  • Fork frame: heavy-gauge steel construction with continuous welds; fork frame load capacity up to 3000 kg depending on model.
  • Conforms to EN1757-2.


Variants (basic technical table)
i-LIFT NO. | Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm(in.) | Fork Length mm(in.) | Overall Forks Width mm(in.)
1120201 | SP20S | 2000 (4400) | 85 or 75 (3.3 or 3) | 200 or 190 (7.9 or 7.5) | 1150 (45.3) | 550 (21.7)
1120202 | SP20L | 2000 (4400) | 85 or 75 (3.3 or 3) | 200 or 190 (7.9 or 7.5) | 1220 (48) | 685 (27)
1120203 | SP25S | 2500 (5500) | 85 or 75 (3.3 or 3) | 200 or 190 (7.9 or 7.5) | 1150 (45.3) | 550 (21.7)
1120204 | SP25L | 2500 (5500) | 85 or 75 (3.3 or 3) | 200 or 190 (7.9 or 7.5) | 1220 (48) | 685 (27)
1120205 | SP30S | 3000 (6600) | 85 or 75 (3.3 or 3) | 200 or 190 (7.9 or 7.5) | 1150 (45.3) | 550 (21.7)
1120206 | SP30L | 3000 (6600) | 85 or 75 (3.3 or 3) | 200 or 190 (7.9 or 7.5) | 1220 (48) | 685 (27)

Notes
  • Special fork sizes are available upon request.


Technical specifications
  • Series: SP SERIES (hand pallet truck).
  • Hydraulic pump: European technology, premium-quality hydraulic with German-made seal kits.
  • Control: three-position fingertip lever; neutral position releases the handle.
  • Frame: heavy-gauge steel fork frame with continuous welds.
  • Standards: conforms to EN1757-2.
  • Available capacities: 2000 kg (SP20S/SP20L), 2500 kg (SP25S/SP25L), 3000 kg (SP30S/SP30L).
  • Fork lengths: 1150 mm or 1220 mm.
  • Overall forks width: 550 mm or 685 mm.
  • Min. fork height options: 75 mm or 85 mm.
  • Max. fork height options: 190 mm or 200 mm.
