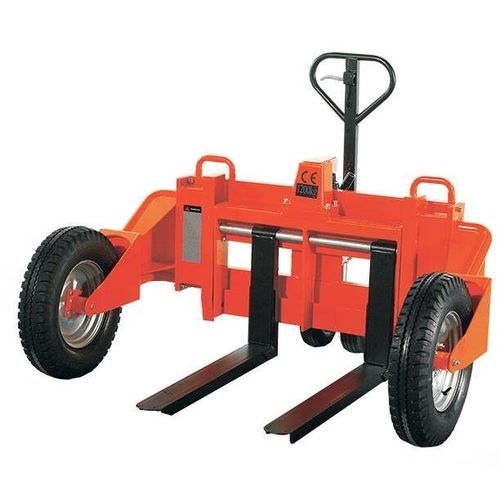

Hand pallet truck RTT12

outdoorrough terrain

Product Overview
The RTT12 rough-terrain manual pallet truck is a hand-operated material handling solution designed to transport palletized loads across uneven, outdoor and challenging ground conditions. Equipped with large pneumatic tires and a robust fork geometry, it ensures improved traction and mobility on construction sites, farms, yards and similar rugged environments. The unit is finished with a triple-layer epoxy paint for corrosion resistance and extended service life.

Details

• Rough-terrain manual pallet truck for outdoor and uneven surfaces
• Large pneumatic tires for enhanced grip and shock absorption
• Triple-layer epoxy paint finish for corrosion protection
• Fork length: 860 mm
• Straddle gap: 1277 mm
• Adjustable fork width: 212 - 735 mm
• Lift height (max): 223 mm
• Front wheel diameter: 550 mm (pneumatic)
• Drive wheel diameter: 300 mm (pneumatic)

Technical Table
i-LIFT NO. | Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm(in.) | Fork Length mm(in.) | Adjustable Forks Width mm(in.)
— | RTT12 | 1200 | 53 | 223 | 860 | 212-735

Technical Specifications

• Model: RTT12
• Type: Rough-terrain manual pallet truck (hand-operated)
• Capacity: 1200 kg
• Min. fork height: 53 mm
• Max. fork height (lift height): 223 mm
• Fork length: 860 mm
• Straddle gap: 1277 mm
• Adjustable fork width: 212 - 735 mm
• Front wheel diameter: 550 mm (pneumatic)
• Drive wheel diameter: 300 mm (pneumatic)
• Tires: pneumatic, suitable for rough terrain
• Finish: triple-layer epoxy paint
