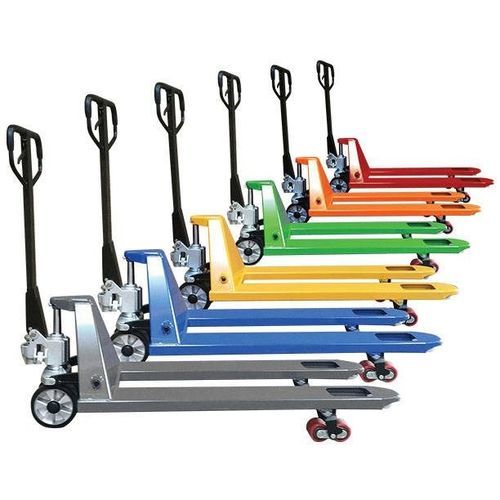

Hydraulic pallet truck AC25 series

handfoot-operateddouble-roller

Product description
Manual pallet truck AC25 Series designed for industrial material handling. Rubber-coated ergonomic handle, fully sealed hydraulic unit and single valve cartridge for simplified maintenance. Powder-coated high-grade steel chassis with hardened chrome piston and protective dust cover for long service life. Forks with entry rollers and tapered profile for easy pallet entry; reinforced for heavy loads. 3-function hand control (raise, neutral, lower) and spring-loaded self-righting safety loop handle. Polyurethane load wheels and rubber steering wheels as standard.

Details of Manual Pallet Truck

• Manual hand pallet truck with robust industrial design
• 3 mm thick chassis with 5-year warranty
• Fork length: 1,150 mm
• Lift height (max): 200 mm
• Width across forks: 540 mm (AC25L variant: 685 mm)
• German Wagner powder coating
• Available in 7 colors (RAL references)
• AC25CBV: 200 mm rubber steering wheels, polyurethane tandem rollers
• Optional wheels and rollers available for AC25CBV
• German pump seals and galvanized body pump
• Ergonomic rubber-coated handle with 200° rotation
• 6204 2RS sealed bearings
• Load capacity: 2,500 kg
• Net weight: 74 kg

Models (key dimensions)

• AC25CBV — Capacity: 2,500 kg (5,500 lb); Min fork height: 85 mm; Max fork height: 200 mm; Fork length: 1,150 mm; Overall forks width: 540 mm
• AC25QL — Capacity: 2,500 kg (5,500 lb); Min fork height: 85 mm; Max fork height: 200 mm; Fork length: 1,150 mm; Overall forks width: 540 mm

Options

• Axle, bearings, stainless steel chain
• Extreme temperature bearings and cold oil
• Foot pedal, safety guard
• Handbrake, foot brake, deadman switch
• Polyurethane and/or polyamide wheels and rollers
• Antistatic wheels

Technical specifications

• Series / Model: AC25 Series (typical: AC25CBV, AC25QL)
• Rated load capacity: 2,500 kg
• Fork length: 1,150 mm
• Minimum fork height: 85 mm
• Maximum fork height (lift): 200 mm
• Overall forks width: 540 mm (AC25L: 685 mm)
• Net weight: 74 kg
• Wheels: polyurethane tandem rollers (load) and rubber steering wheels (AC25CBV); other options available
• Hydraulics: fully sealed unit, single valve cartridge, galvanized pump body, German seals
• Handle: rubber-coated, ergonomic, 200° rotation, spring-loaded self-righting loop
• Bearings: 6204 2RS sealed bearings
• Finish: German Wagner powder coating
• Piston: hardened chrome with dust cover
