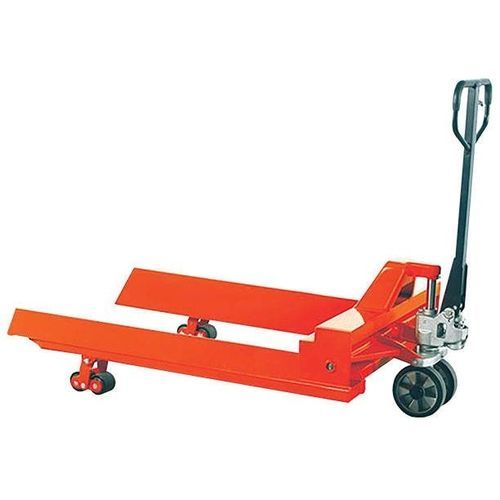

Hydraulic pallet truck AC20R series

handfor heavy-duty applicationscompact

Overview
The AC20R Manual Reel Handling Pallet Truck is engineered for safe and efficient transport of cylindrical loads such as paper rolls, carpet rolls and textile reels. It functions like a hydraulic pallet truck with manual movement and hydraulic (oil pump) lifting for reliable vertical handling.

Details

• Designed specifically for reel transport (paper, carpet, textile and similar cylindrical materials)
• Heavy-duty hydraulic pump for consistent lifting performance
• Controlled lowering system to manage descent speed
• Built-in overload valve for protection of operator and equipment
• Ergonomic handle with reinforced three-point rubber grip for improved control
• Available in three roll diameter ranges (min / max mm): 600/800, 800/1200, 1200/1500
• Three fork widths across forks available depending on model: 850 mm, 1000 mm, 1150 mm

Features

• Optimised geometry for secure handling of cylindrical loads
• Robust hydraulic system enabling smooth manual lifting via oil pump
• Manual transport operation combined with hydraulic lifting
• Lowering speed control for safe descent of heavy rolls
• Overload protection valve to prevent damage from excessive loads
• Comfortable reinforced three-point rubber grip handle for operator ergonomics
• Uniform load capacity across models: 2000 kg
• Compact heavy-duty construction; total weight varies by model

Model Table

• AC20R1500 | Capacity: 2000 kg | Min. roll Ø: 1200 mm | Max. roll Ø: 1500 mm | Fork length: 1100 mm
• AC20R1000 | Capacity: 2000 kg | Min. roll Ø: 800 mm | Max. roll Ø: 1200 mm | Fork length: 1100 mm
• AC20R700 | Capacity: 2000 kg | Min. roll Ø: 600 mm | Max. roll Ø: 800 mm | Fork length: 1100 mm

Usage Notes
Intended primarily for transporting cylindrical goods (paper, textiles, carpets). Select the model and fork width according to the roll diameter and any facility layout constraints. Verify fork width and roll range before ordering.

Technical specifications

• Model family: AC20R Series
• Operation: Manual push with hydraulic (oil pump) lifting
• Hydraulic system: Heavy-duty hydraulic pump
• Safety: Lowering speed control and overload valve
• Handle: Ergonomic with reinforced three-point rubber grip
• Available fork widths: 850 mm, 1000 mm, 1150 mm (model-dependent)
• Tailored roll diameter ranges (min / max mm): 600/800, 800/1200, 1200/1500
• Capacity: 2000 kg (all models)
• Fork length: 1100 mm (all listed models)
• Approx. total weight: 120–130 kg (depending on model)
• Typical applications: paper reels, carpet rolls, textile reels and other cylindrical goods
