Electric pallet truck EPT15V
battery-powered24 Vlow-profile

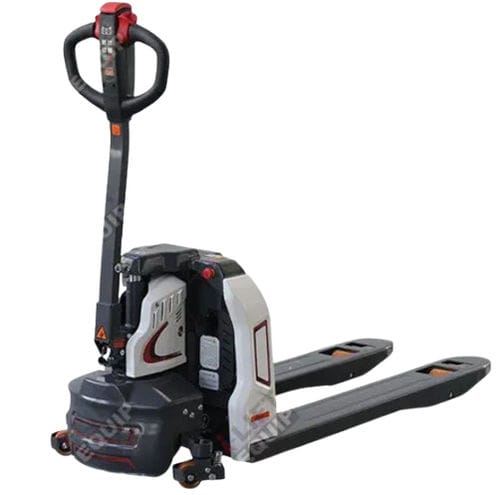

Electric pallet truck - EPT15V - i-lift Equipment Ltd. - battery-powered / 24 V / low-profile
Electric pallet truck - EPT15V - i-lift Equipment Ltd. - battery-powered / 24 V / low-profile
Electric pallet truck - EPT15V - i-lift Equipment Ltd. - battery-powered / 24 V / low-profile - image - 2
Add to favorites
Compare this product
Go to the i-lift Equipment Ltd. website for more information

Characteristics

Operation
electric, battery-powered
Voltage
24 V
Other characteristics
for warehouse, compact, narrow, order-picking, low-profile, for EURO pallets
Load

1,500 kg
(3,306.93 lb)

Lifting height

Min.: 8.5 cm
(3.3 in)

Max.: 19.5 cm
(7.7 in)

Fork length

115 cm
(45.28 in)

Fork width

16 cm
(6.3 in)

Fork spacing

Min.: 550 mm
(21.65 in)

Max.: 680 mm
(26.77 in)

Battery capacity

Min.: 20 Ah

Max.: 30 Ah

Speed

Min.: 4.2 km/h
(2.61 mph)

Max.: 4.5 km/h
(2.8 mph)

Weight

142 kg
(313.06 lb)

Description

Overview
Electric powered pallet truck for internal horizontal transport and pallet handling in confined spaces. Compact chassis and precise controls for short-distance transfers in warehouses and production areas.

Key technical specifications
  • i-LIFT NO.: 1213201
  • Capacity: 1500 kg (3300 lb)
  • Min. Fork Height: 85 mm (3.3 in)
  • Max. Fork Height: 195 mm (7.7 in)
  • Load Center: 600 mm (23.6 in)
  • Wheelbase: 1270 mm (47.2 in)
  • Overall Forks Width: 680/550 mm (26.8/21.7 in)
  • Fork dimensions: 1150 × 160 × 50 mm (45.3 × 6.3 × 2 in)
  • Front Wheel: Φ80 × 70 mm (Φ3.1 × 2.8 in)
  • Driving Wheel: Φ210 × 75 mm (Φ8.3 × 3 in)
  • Ground Clearance (centre of wheelbase): 35 mm (1.4 in)
  • Turning Radius: 1380 mm (54.3 in)
  • Aisle width for pallets 800 × 1200 (lengthways): 1870 mm (73.6 in)
  • Aisle width for pallets 1000 × 1200 (crossways): 1820 mm (71.7 in)


Performance
  • Travel Speed (with/without load): 4.2 / 4.5 km/h
  • Max. Gradeability (with/without load): 6% / 10%
  • Drive Motor: 750 W
  • Lift Motor: 500 W
  • Battery (V/Ah): 24/20(30), 5.5(12.1)
  • Net Weight: 142 kg (312.4 lb)


Applications
  • Suitable for handling Euro pallets and industrial pallets (800×1200, 1000×1200)
  • Configured for narrow aisles and order-picking tasks requiring low fork height and compact dimensions
  • Accessible battery and wheel components for routine maintenance and replacement
