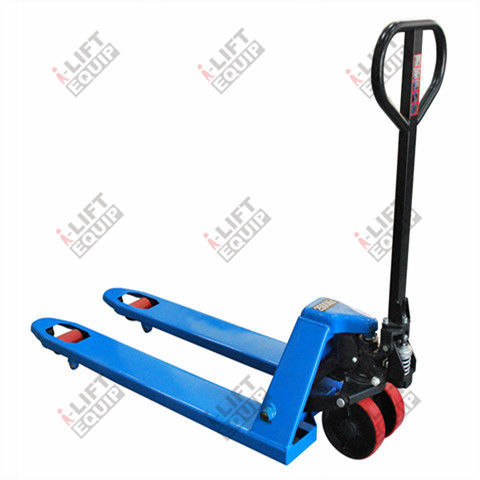

Hydraulic pallet truck HP series

handshort-forklong-fork

Description
Manual hand pallet truck for pallet handling in warehouses, logistics and production environments. Available in capacities from 2000 to 3000 kg with fork lengths of 1150 mm or 1220 mm. Conforms to EN1757-2 for safe operation.

Key features

• Built-in overload valve and totally sealed hydraulic pump.
• German seal kit for extended pump life.
• Heavy-duty, reinforced forks for maximum strength and durability.
• Entry rollers reduce operator effort and protect load rollers and pallets.
• Maintenance-free oil-less bushings at key points to reduce operating force and extend service life.
• Designed for frequent pallet handling in industrial environments.

Available models and specifications

• 1110101 | HP20S | Capacity: 2000 kg (4400 lb) | Min fork height: 85 or 75 mm (3.3 or 3 in) | Max fork height: 205 or 195 mm (8.1 or 7.7 in) | Fork length: 1150 mm (45.3 in) | Overall forks width: 540 mm (21.3 in)
• 1110102 | HP20L | Capacity: 2000 kg (4400 lb) | Min fork height: 85 or 75 mm (3.3 or 3 in) | Max fork height: 205 or 195 mm (8.1 or 7.7 in) | Fork length: 1220 mm (48 in) | Overall forks width: 680 mm (26.8 in)
• 1110103 | HP25S | Capacity: 2500 kg (5500 lb) | Min fork height: 85 or 75 mm (3.3 or 3 in) | Max fork height: 205 or 195 mm (8.1 or 7.7 in) | Fork length: 1150 mm (45.3 in) | Overall forks width: 540 mm (21.3 in)
• 1110104 | HP25L | Capacity: 2500 kg (5500 lb) | Min fork height: 85 or 75 mm (3.3 or 3 in) | Max fork height: 205 or 195 mm (8.1 or 7.7 in) | Fork length: 1220 mm (48 in) | Overall forks width: 680 mm (26.8 in)
• 1110105 | HP30S | Capacity: 3000 kg (6600 lb) | Min fork height: 85 or 75 mm (3.3 or 3 in) | Max fork height: 205 or 195 mm (8.1 or 7.7 in) | Fork length: 1150 mm (45.3 in) | Overall forks width: 540 mm (21.3 in)
• 1110106 | HP30L | Capacity: 3000 kg (6600 lb) | Min fork height: 85 or 75 mm (3.3 or 3 in) | Max fork height: 205 or 195 mm (8.1 or 7.7 in) | Fork length: 1220 mm (48 in) | Overall forks width: 680 mm (26.8 in)

Technical specifications

• Built-in overload valve and totally sealed hydraulic pump.
• German seal kit for extended pump life.
• Heavy-duty, reinforced forks for maximum strength and durability.
• Entry rollers to reduce operator effort and protect load rollers and pallets.
• Maintenance-free oil-less bushings at key points to reduce operating force and extend service life.
• Standards: conforms to EN1757-2.
• Available capacities: 2000 kg, 2500 kg, 3000 kg (HP20, HP25, HP30).
• Fork length options: 1150 mm (45.3 in) and 1220 mm (48 in).
• Overall forks widths per model: 540 mm (21.3 in) and 680 mm (26.8 in).
