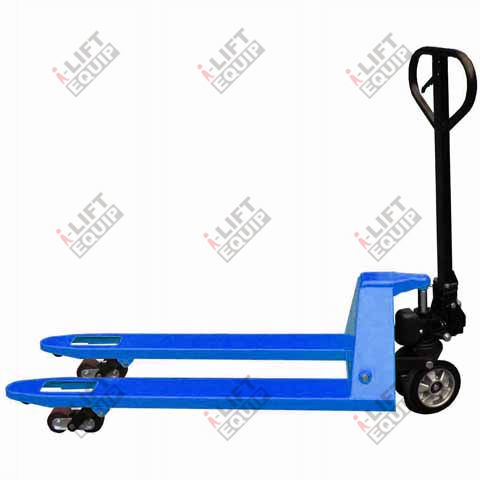

Hydraulic pallet truck TX series

handfor heavy-duty applicationslong-fork

Product description
A manual pallet truck designed for transporting and positioning pallets in warehouses and production areas. Available in four models to suit common pallet lengths and load capacities.

Features

• Reliable hydraulic pump: German-made seal kits and pump design control the lowering speed of the load.
• Bushings at key points: increased service life and easier repair.
• Easy pallet entry and exit: tapered fork tips and a mounting bracket with entry roller protect the roller and load wheel, facilitating entry and exit from pallets.
• Heavy-duty frame: high-quality steel plate with continuous welds throughout the fork structure.
• Complies with EN1757-2.
• Special fork sizes available on request.
• Optional backrest available.

Available models and dimensions
i-LIFT No. | Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm(in.) | Fork Length mm(in.) | Overall Forks Width mm(in.)
1112001 | TX20S | 2000 (4400) | 85 or 75 (3.3 or 3) | 205 or 195 (8.1 or 7.7) | 1150 (45.3) | 530 (20.9)
1112002 | TX20L | 2000 (4400) | 85 or 75 (3.3 or 3) | 205 or 195 (8.1 or 7.7) | 1220 (48) | 685 (27)
1112003 | TX25S | 2500 (5500) | 85 or 75 (3.3 or 3) | 205 or 195 (8.1 or 7.7) | 1150 (45.3) | 530 (20.9)
1112004 | TX25L | 2500 (5500) | 85 or 75 (3.3 or 3) | 205 or 195 (8.1 or 7.7) | 1220 (48) | 685 (27)

Technical specifications

• Series: TX series
• Brand: i-LIFT
• Standards: Conforms to EN1757-2
• Hydraulic pump: German-made seal kits; controlled descending speed technology
• Bushings at key points for extended service life and easier repair
• Fork design: tapered tip and mounting bracket with entry roller to protect roller and load wheel
• Frame: heavy-duty high-quality steel plate with continuous welds
• Options: special fork sizes available; optional backrest
• Models: TX20S / TX20L — 2000 kg (4400 lb); TX25S / TX25L — 2500 kg (5500 lb)
• Min fork height: 85 or 75 mm (3.3 or 3 in); Max fork height: 205 or 195 mm (8.1 or 7.7 in)
• Fork lengths: 1150 mm (45.3 in) or 1220 mm (48 in); Overall fork widths: 530 mm (20.9 in) or 685 mm (27 in)
