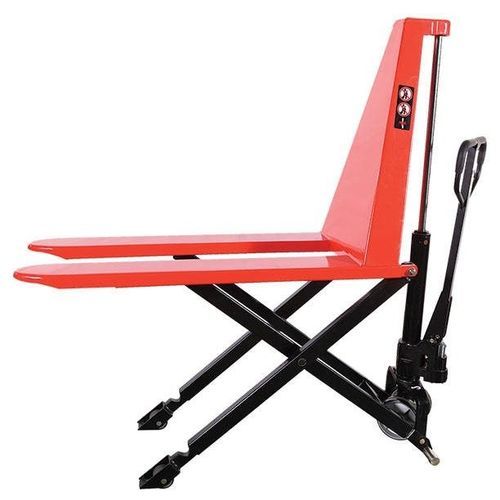

Hydraulic pallet truck HL series

handhigh-liftfor light-duty applications

Product Overview
The manual scissor lift pallet truck HL-Series is a compact, high-lift material handling solution engineered for lifting and transporting loads up to 1,000 kg. It uses a single-cylinder hydraulic pump with German seals for efficient lifting with minimal pumping effort. Two rear stabilizing bars automatically engage at a lift height of 400 mm to prevent movement. The unit features a high-strength frame, a lowering pedal and two operating speeds for accurate load positioning. Ideal for loading/unloading, order picking and light workbench operations in warehouses, workshops and production areas.

Key Details

• Load capacity: up to 1,000 kg (2,200 lb)
• Monocylinder hydraulic pump with German pump seals
• Two rear stabilizing bars engage automatically at 400 mm lift height
• High-strength frame for improved operator protection
• Lowering pedal for controlled descent
• Two operating speeds for precise handling
• Maximum lift height: up to 800 mm (model dependent)
• Fork width across forks: 540 mm
• Fork length: standard 1165 mm (other lengths/options available 1500 / 1800 / 2000 mm)

Models / Technical Table
Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm(in.) | Fork Length mm(in.) | Overall Forks Width mm(in.)
HL540M2000 | 1000 (2200) | 85 (3.3) | 725 | 2000 | 540
HL540M1800 | 1000 (2200) | 85 (3.3) | 725 | 1800 | 540
HL540M1500 | 1000 (2200) | 85 (3.3) | 725 | 1500 | 540
HL540M | 1000 (2200) | 85 (3.3) | 800 | 1165 | 540

Technical specifications

• Series: HL-Series
• Typical load capacity: 1,000 kg (2,200 lb)
• Min. fork height: 85 mm (3.3 in)
• Max. fork height: 725 mm (models HL540M1500/1800/2000) or 800 mm (HL540M)
• Fork length options: 1165 mm standard (HL540M); 1500 mm, 1800 mm, 2000 mm variants available
• Overall fork width: 540 mm
• Hydraulic system: single-cylinder hydraulic pump with German seals
• Safety/stability: two rear stabilizing bars engage at 400 mm lift height
• Controls: lowering pedal and two operating speeds
• Applications: loading/unloading, order picking and light workbench tasks in warehouses, workshops and production areas
