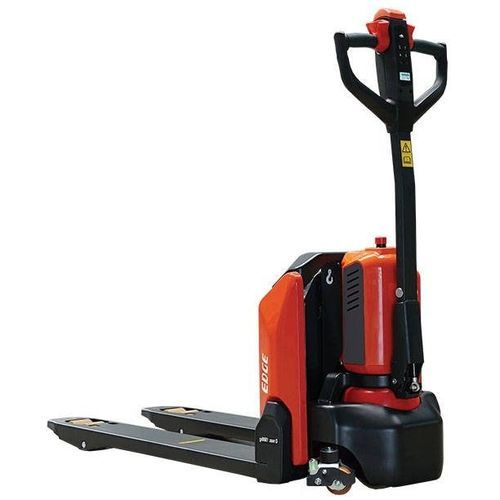

Electric pallet truck PTE15N series

lithium battery-poweredbattery-powered24 V

Overview The PTE15N lithium electric pallet truck provides a compact, high-performance solution for industrial material handling. It is available with an optional integrated weighing system (4 load cells) offering accuracy of ±0.2% of rated capacity and functions such as tare, gross/net and total weight. Fast-charging lithium batteries enable extended operating periods; optional 30 Ah and 36 Ah batteries increase runtime and are designed to withstand a 1.5 m drop. The truck is designed for easy manoeuvring in confined spaces with a PIN-code start, stabilizing rollers, Curtis controller with CAN-Bus and an ergonomic handle to help reduce operator strain. Despite a reduced overall length it retains standard fork length for compatibility with pallets and handling equipment.

Key features

• PTE15N EDGE lithium-ion electric pallet truck
• Load capacity: 1.5 ton (1500 kg)
• Compact and lightweight industrial design
• Ergonomic handle with LCD display and PIN-code start-up
• Air spring on the tiller bar
• Slow speed (turtle) mode for controlled turning
• Shorter overall length while maintaining 1150 mm fork length
• Total weight: approx. 123 kg including battery
• Maintenance-free 24 V / 20 Ah lithium-ion battery standard
• Easy-access battery for simple installation and replacement
• Battery designed to withstand a 1.5 m drop and to recharge in ~2.5 hours
• Optional batteries: 30 Ah or 36 Ah for extended runtime
• Optional integrated weighing system with 4 load cells (±0.2%)
• Stabilizing rollers included as standard
• Curtis controllers and throttle with CAN-BUS technology
• Vertical handle position for manoeuvring in tight spaces
• Available in multiple fork-length/width versions
• Chassis color can be customized
• Ergonomic design helps reduce work-related musculoskeletal disorders
• Options: belt wheels, customizable colours

Models / Key dimensions

• PTE15N-1500 — Capacity: 1500 kg; Min fork height: 80 mm; Max fork height: 1160 mm; Standard fork length: 1150 mm
• PTE15NLOW61S — Capacity: 1500 kg; Min fork height: 61 mm; Max fork height: 1160 mm; Standard fork length: 1150 mm
• PTE15N800×450 — Capacity: 1500 kg; Min fork height: 80 mm; Max fork height: 1160 mm; Fork size: 800×450 mm
• PTE15N800 — Capacity: 1500 kg; Min fork height: 80 mm; Max fork height: 1160 mm; Standard fork length: 1150 mm
• PTE15NL — Capacity: 1500 kg; Min fork height: 80 mm; Max fork height: 1160 mm; Standard fork length: 1150 mm
• PTE15NC — Capacity: 1500 kg; Min fork height: 80 mm; Max fork height: 1160 mm; Standard fork length: 1150 mm
• PTE15N/36AH — Capacity: 1500 kg; Min fork height: 80 mm; Max fork height: 1160 mm; Battery: 36 Ah option
• PTE15N — Capacity: 1500 kg; Min fork height: 80 mm; Max fork height: 1160 mm; Standard fork length: 1150 mm

Technical specifications

• Rated capacity: 1,500 kg (1.5 ton)
• Standard fork length: 1150 mm
• Min. fork height (typical): 80 mm (LOW variant: 61 mm)
• Max. fork height: 1160 mm
• Total weight (with battery): approx. 123 kg
• Standard battery: maintenance-free 24 V / 20 Ah lithium-ion
• Optional batteries: 30 Ah or 36 Ah for extended runtime
• Battery features: fast recharge (~2.5 hours), designed to withstand 1.5 m drop
• Weighing system (optional): 4 load cells, accuracy ±0.2% of rated capacity; functions include tare, gross/net, total weight
• Controls/electronics: Curtis controller and throttle, CAN-Bus technology
• Safety and ergonomics: PIN-code start, air spring on tiller, slow-speed mode, stabilizing rollers, vertical-handle manoeuvring
