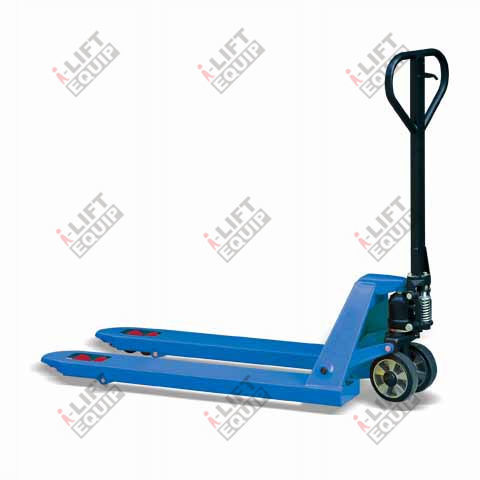

Hand pallet truck EC series

steelfor industrial applications

Product Overview
EC SERIES hand pallet truck by i-LIFT for manual handling in industrial environments. Available in 2000 kg and 2500 kg capacities with reinforced steel frame and tapered fork tips for easier pallet entry.

Key Features

• Bushings at key points for reduced wear.
• Super strong steel frame construction.
• Tapered fork tips with entry guide roller for smooth pallet entry.
• Fully adjustable push rods on forks for alignment.
• Meets EN1757-2 safety standard.

Special Fork Lengths Available
800, 950, 1000, 1150, 1220, 1500, 2000 mm (depending on model).

Models and Dimensions

• i-LIFT No. 1110501 — Model EC20S: Capacity 2000 kg (4400 lb); Min fork height 85 or 75 mm (3.3 or 3 in); Max fork height 205 or 195 mm (8.1 or 7.7 in); Fork length 1150 mm (45.3 in); Forks width 550 mm (21.7 in).
• i-LIFT No. 1110502 — Model EC20L: Capacity 2000 kg (4400 lb); Min fork height 85 or 75 mm (3.3 or 3 in); Max fork height 205 or 195 mm (8.1 or 7.7 in); Fork length 1220 mm (48 in); Forks width 685 mm (27 in).
• i-LIFT No. 1110503 — Model EC25S: Capacity 2500 kg (5500 lb); Min fork height 85 or 75 mm (3.3 or 3 in); Max fork height 205 or 195 mm (8.1 or 7.7 in); Fork length 1150 mm (45.3 in); Forks width 550 mm (21.7 in).
• i-LIFT No. 1110504 — Model EC25L: Capacity 2500 kg (5500 lb); Min fork height 85 or 75 mm (3.3 or 3 in); Max fork height 205 or 195 mm (8.1 or 7.7 in); Fork length 1220 mm (48 in); Forks width 685 mm (27 in).

Technical specifications

• Series: EC series.
• Manufacturer/Brand: i-LIFT.
• Standard: Conforms to EN1757-2.
• Capacity options: 2000 kg (4400 lb) and 2500 kg (5500 lb).
• Minimum fork height: 85 or 75 mm (3.3 or 3 in).
• Maximum fork height: 205 or 195 mm (8.1 or 7.7 in).
• Available fork lengths: 1150 mm (45.3 in) or 1220 mm (48 in); special lengths: 800, 950, 1000, 1500, 2000 mm.
• Fork widths examples: 550 mm (21.7 in) and 685 mm (27 in).
• Design features: tapered fork tips with entry guide roller, fully adjustable push rods, bushings at key points, reinforced steel frame.
