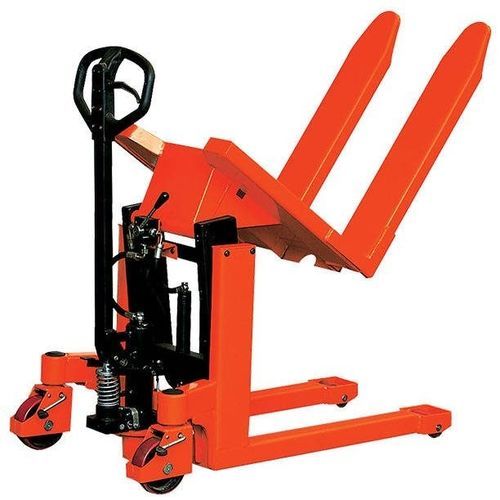

Manual tilter LT10 series

electriccase90°

Product description
LT10 Series pallet tilters lift and tilt pallets to an ergonomic angle to reduce bending and over-reaching. The range includes LT10M (manual) and LT10E (electric) models. The electric version provides forced steering on one wheel for improved manoeuvrability. Lift/lower is operated by a switch on the control lever; tilt/return is operated by a wired remote control. Functions can be used independently or simultaneously. For safe tilt/return operation the unit must stand on a firm surface and the universal wheel must be braked. The handle is adjustable and can be locked to suit sitting or standing operations; it can also be rotated to improve access when stacking. Forks tilt up to 90°. Both versions include a parking brake and foot protectors. Conforms to EN1757-1 and EN1175.

Details of pallet tilter

• Designed to move and tilt loads such as boxes, cases and stacked goods
• Two versions: manual tilting (LT10M) and electric tilting with remote (LT10E)
• Adjustable, lockable operator handle for sitting or standing use
• Fork tilt up to 90° for ergonomic unloading and stacking
• Caster brakes, parking brake and foot protection supplied
• Load capacity: 1000 kg (2200 lb)
• Fork length: 800 mm
• Width across forks: 560 mm
• Lift height (max): 285 mm
• Min. / Max. center of gravity: 200 / 400 mm

Models and dimensions (table)
i-LIFT NO. | Model No. | Capacity kg(lb.) | Max. Fork Height mm(in.) | Min. Fork Height mm(in.) | Fork Length mm(in.) | Individual Fork Width mm(in.)
— | LT10M | 1000 (2200) | 285 (11.2) | 85 (3.3) | 800 (31.5) | 163 (6.4)
— | LT10E | 1000 (2200) | 285 (11.2) | 85 (3.3) | 800 (31.5) | 163 (6.4)

Technical specifications

• Series / Model: LT10 Series (LT10M = manual, LT10E = electric)
• Rated load capacity: 1000 kg (2200 lb)
• Fork length: 800 mm (31.5 in)
• Width across forks: 560 mm
• Individual fork width: 163 mm (6.4 in)
• Max. fork height (lift height): 285 mm (11.2 in)
• Min. fork height: 85 mm (3.3 in)
• Min. / Max. center of gravity: 200 / 400 mm
• Fork tilt: up to 90°
• Steering: forced steering on one wheel (electric model)
• Tilt/return control: remote control with long wired lead (electric model)
• Lift/lower control: switch on control lever
• Safety / equipment: parking brake, caster brakes, foot protectors; universal wheel must be braked for tilt/return
• Adjustable and lockable handle for sitting or standing operation
• Standards: Conforms to EN1757-1 and EN1175
