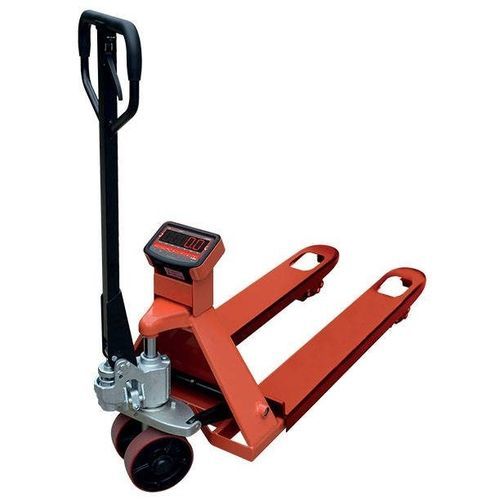

Hand pallet truck ZF20N

battery-powered6 Vgalvanised steel

Overview
A weighing pallet truck combining a manual pallet jack with an integrated digital scale for lifting, transporting and weighing loads in a single operation. Designed for warehouse, logistics and shipping environments where on-the-spot weight measurement reduces handling time and improves accuracy.

Key features

• Rated capacity: 2000 kg
• Ergonomic handle for operator control
• Galvanized body pump with quicklift
• Polyurethane steering wheels and tandem rollers for durable, smooth travel
• 4 × IP67 aluminium load cells
• 30 mm LED display with 500 g increments
• Accuracy: ±0.1% of 2000 kg
• Water‑resistant numeric keypad
• Weighing functions: Tare, Gross/Net, Total weight
• Battery operated: 6 V 4 Ah; external charger adapter 220 V

Options

• Customizable colours and digital display configuration
• Available without on-board printer

Models and dimensions
i-LIFT NO. | Model No. | Capacity kg (lb.) | Min. Fork Height mm (in.) | Max. Fork Height mm (in.) | Fork Length mm (in.) | Overall Forks Width mm (in.)
— | ZF20NIMP | 2000 | 75 | 200 | 1150 | 540
— | ZF20N | 2000 | 75 | 200 | 1150 | 540

Technical specifications

• Model family: ZF20N Series (examples: ZF20N, ZF20NIMP)
• Rated capacity: 2000 kg
• Min. fork height: 75 mm
• Max. fork height: 200 mm
• Fork length: 1150 mm
• Overall forks width: 540 mm
• Load cells: 4 × IP67 aluminium sensors
• Display: 30 mm LED, increments 500 g
• Accuracy: ±0.1% of 2000 kg
• Power: rechargeable battery 6 V 4 Ah; external charger adapter 220 V
• Operating temperature range: -10 °C to +40 °C
• Keypad: water-resistant numeric keyboard
• Wheels: polyurethane steering wheel and tandem rollers
• Pump: galvanized body pump with quicklift
• Weighing functions: Tare, Gross/Net, Total weight
