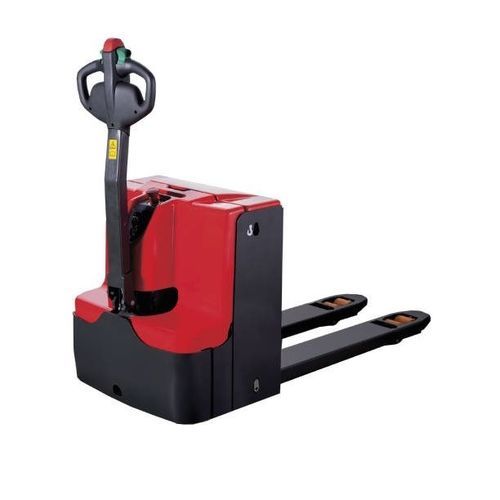

Battery-powered pallet truck PT16L

long-fork

Product overview
The PT16L pedestrian powered pallet truck series is ergonomic, compact and highly maneuverable. Equipped with a maintenance-free German AC traction motor and core components from recognised brands (Kordel, Intorq, Wicke), the series is designed to reduce MSD risk and simplify maintenance and servicing.

Key features

• Travel speed: 6 km/h.
• Gradeability: 8% laden, 15% unladen.
• Electromagnetic brakes; traction motor and brakes are protected.
• Wheels: polyurethane (PU), diameter 230 mm.
• Standard lift height: 125 mm.
• Aisle width for 800 x 1200 pallets (PT16L): 1935 mm.
• Fork dimensions (thickness 60 mm / width 173 mm / length 1150 mm).
• Width across forks: 540 mm or 680 mm.
• Ground clearance: 25 mm.
• Turning radius (PT16L): 1440 mm.
• Long steering handle for operator safety and reduced effort.
• CAN-BUS multiplexing system to improve performance and reduce downtime.
• Easy maintenance access: cowl removable with only 2 screws; wheels and rollers replaceable without lifting device.
• Each PT L model has a battery for a specific use: PT16L uses a 160 Ah 2VBS battery (~150 kg) suitable for short-length pallet trucks in narrow areas; stainless steel battery housing reduces maintenance costs and damage risk.
• Zapi motor controller (IP54) – dust and splash resistant; controller customization available on other models.
• Sound level at driver’s ear (acc. to EN 12053): 67 dB for PT16L.
• Chassis mainframe thickness: 8 mm.

Models table
i-LIFT NO. | Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm(in.) | Load Center mm(in.) | Wheelbase mm(in.)
PT16L-2000 | PT16L-2000 | 1600 | 85 | 1335 | 900 | 1971
PT16L-1800 | PT16L-1800 | 1600 | 85 | 1335 | 900 | 1771
PT16L | PT16L | 1600 | 85 | 1335 | 600 | 1261

Options

• Load backrest.
• Side battery extraction.
• Different fork dimensions available on demand (540 mm or 680 mm).
• Automatic battery filling system.

Technical specifications

• Series / Model: PT16L.
• Capacity: 1.6 metric ton (1600 kg).
• Travel speed: 6 km/h.
• Gradeability: 8% laden / 15% unladen.
• Traction motor: German AC traction motor, maintenance-free.
• Controller: Zapi motor controller (IP54), customizable on some models.
• Brakes: electromagnetic; traction motor and brakes protected.
• Battery (PT16L): 160 Ah 2VBS (approx. 150 kg), stainless steel battery housing.
• Wheels: PU, diameter 230 mm.
• Standard lift height: 125 mm.
• Fork dimensions (standard): 60 mm (thickness) / 173 mm (width) / 1150 mm (length).
• Width across forks options: 540 mm / 680 mm (others on demand).
• Ground clearance: 25 mm.
• Turning radius (PT16L): 1440 mm.
• Aisle width for 800 x 1200 pallets (PT16L): 1935 mm.
• Sound level (EN 12053): 67 dB at driver’s ear (PT16L).
• Chassis mainframe thickness: 8 mm.
• Maintenance: easy cowl removal with 2 screws; wheels and rollers replaceable without lifting device.
• CAN-BUS multiplexing for improved performance and reduced downtime.
• Core components: brands such as Kordel, Intorq, Wicke.
