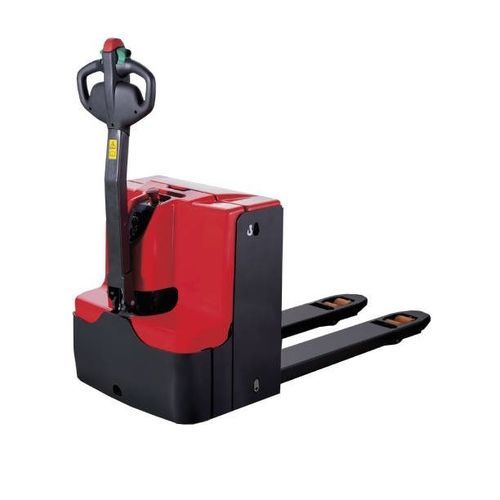

Electric pallet truck PT16L series

battery-poweredlow-noisefor warehouse

Overview

• PT16L pedestrian powered pallet truck series for compact, ergonomic and highly maneuverable pallet handling in narrow aisles.
• 8 mm thick mainframe construction for sustained service in industrial environments.
• German AC traction motor providing maintenance-free drive performance.
• Core components from recognised brands (Kordel, Intorq, Wicke, Zapi).
• Long steering handle and ergonomic layout designed to reduce operator effort and support MSD prevention.

Performance and key data

• Travel speed: 6 km/h.
• Gradeability: 8% when laden, 15% when unladen.
• Electromagnetic braking system.
• Wheels: polyurethane (PU), Ø 230 mm.
• Standard fork lift height: 125 mm; minimum fork height: 85 mm; maximum fork height (mast version): 1,335 mm.
• Aisle width for 800 × 1,200 pallets (PT16L): 1,935 mm.
• Fork dimensions (standard): thickness 60 mm / width 173 mm / length 1,150 mm; fork width options: 540 mm or 680 mm (other sizes on request).
• Ground clearance: 25 mm. Turning radius (PT16L): 1,440 mm.
• CAN-BUS multiplexing system to optimise communication and reduce maintenance downtime.
• Service-friendly design: removable cowl with 2 screws; wheels and rollers replaceable without lifting equipment.
• Battery (PT16L): 160 Ah 2VBS (approx. 150 kg), suitable for short-length pallet trucks in narrow operating areas. Stainless steel battery housing to reduce maintenance and corrosion.
• Zapi motor controller (IP54) for dust and splash resistance. Traction motor and brakes protected by chassis design.
• Sound level at driver’s ear (EN 12053): 67 dB (PT16L).

Models (data table)
Model No.: PT16L-2000 — Capacity: 1,600 kg — Min Fork Height: 85 mm — Max Fork Height: 1,335 mm — Load Center: 900 mm — Wheelbase: 1,971 mm
Model No.: PT16L-1800 — Capacity: 1,600 kg — Min Fork Height: 85 mm — Max Fork Height: 1,335 mm — Load Center: 900 mm — Wheelbase: 1,771 mm
Model No.: PT16L — Capacity: 1,600 kg — Min Fork Height: 85 mm — Max Fork Height: 1,335 mm — Load Center: 600 mm — Wheelbase: 1,261 mm

Options

• Load backrest.
• Side battery extraction for easier battery change.
• Various fork dimensions on request (examples: 540 mm or 685 mm).
• Automatic battery filling system.

Technical specifications

• Series: PT L pedestrian powered pallet trucks.
• Mainframe thickness: 8 mm.
• Traction motor: German AC motor, maintenance-free.
• Controller: Zapi, IP54 (dust and splash resistant).
• CAN-BUS multiplexing for improved performance and reduced downtime.
• Travel speed: 6 km/h.
• Gradeability: 8% (laden) / 15% (unladen).
• Brakes: electromagnetic.
• Wheels: PU, Ø 230 mm.
• Standard lift height: 125 mm; fork dimensions: 60 mm (thickness) / 173 mm (width) / 1,150 mm (length).
• Fork width options: 540 mm or 680 mm (other sizes on request).
• Ground clearance: 25 mm; Turning radius: 1,440 mm; Aisle width (800×1,200 pallets): 1,935 mm.
• Battery: 160 Ah 2VBS (~150 kg) for short-length, narrow-area use; stainless steel housing included.
• Easy service access: removable cowl with 2 screws; wheels and rollers replaceable without lifting device.
• Noise level: 67 dB (EN 12053) at driver’s ear (PT16L).
• Optional: load backrest, side battery extraction, automatic filling system, various fork dimensions.
