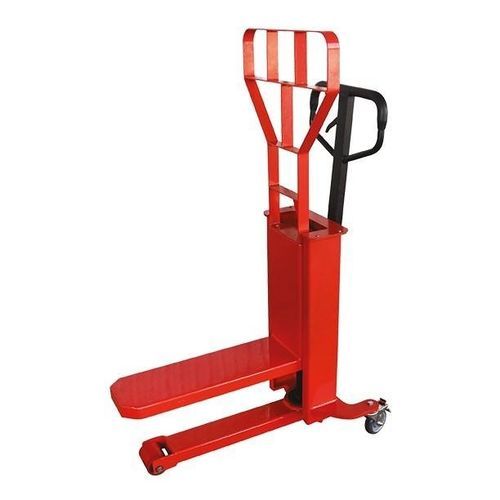

Hydraulic pallet truck ACM500

hand

Overview
Single-fork hand pallet truck designed to lift and transport pallets and non-standard loads in confined or narrow working areas. The unit features a single reinforced fork and a sealed hydraulic pump, enabling compact manoeuvring where access is limited and allowing one-side pallet engagement when required.

Key features

• Model: ACM500
• Load capacity: 500 kg (1,100 lb)
• Minimum fork height: 85 mm (3.3 in)
• Maximum fork height: 325 mm (12.8 in)
• Fork length: 600 mm (23.6 in)
• Unit weight: 60 kg
• Single reinforced fork construction for handling in tight spaces
• Sealed hydraulic pump for low-maintenance operation
• Ergonomic tiller and load backrest fitted as standard for safer handling
• Suitable for one-side access scenarios (e.g., pallets against walls)
• Adaptable to special loads with non-standard dimensions or shapes
• Documentation and technical drawings available for download

Technical specifications

• Model number: ACM500
• Capacity: 500 kg (1,100 lb)
• Fork height (min/max): 85 / 325 mm (3.3 / 12.8 in)
• Fork length: 600 mm (23.6 in)
• Overall forks width: see documentation
• Unit weight: 60 kg
