Piston compressor 2
airelectricoil-free

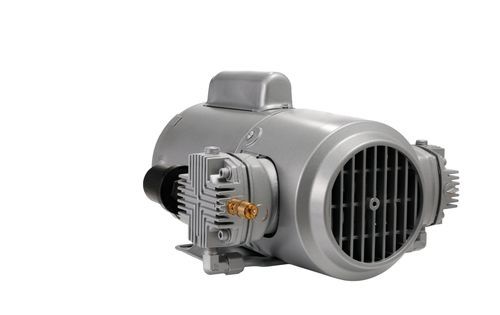

Piston compressor - 2 - JUN-AIR - air / electric / oil-free
Piston compressor - 2 - JUN-AIR - air / electric / oil-free
Piston compressor - 2 - JUN-AIR - air / electric / oil-free - image - 2
Piston compressor - 2 - JUN-AIR - air / electric / oil-free - image - 3
Piston compressor - 2 - JUN-AIR - air / electric / oil-free - image - 4
Piston compressor - 2 - JUN-AIR - air / electric / oil-free - image - 5
Piston compressor - 2 - JUN-AIR - air / electric / oil-free - image - 6
Add to favorites
Compare this product

Characteristics

Technology
piston
Type
air
Power source
electric
Lubrication
oil-free
Voltage
230 V, 115 V
Other characteristics
tank-mounted
Tank volume

Max.: 227.1 l
(60 gal)

Min.: 7.6 l
(2 gal)

Pressure

Max.: 6.89 bar
(99.93 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 8.16 m³/h
(288.17 ft³/h)

Min.: 8.16 m³/h
(288.17 ft³/h)

Power

Max.: 0.56 kW
(0.76 hp)

Min.: 0.56 kW
(0.76 hp)

Length

Max.: 76.2 mm
(3 in)

Min.: 76.2 mm
(3 in)

Width

Max.: 124 mm
(4.88 in)

Min.: 124 mm
(4.88 in)

Weight

Max.: 18 kg
(39.7 lb)

Min.: 18 kg
(39.7 lb)

Noise level

Max.: 75 dB

Min.: 75 dB

Description

Description
The compact tank-mounted piston air compressor 5HCD-10-M530X is engineered for long service life and low maintenance. Its oil-free design provides clean, contaminant-free compressed air suitable for applications requiring oil-free supply. The 5HCD-10-M530X is rated 3/4 HP, operates on 115/230 VAC (60 Hz), delivers 4.8 CFM (≈ 136 LPM) and supports a maximum continuous pressure of 100 PSI.

Series overview
The 5L, 5H, 5V and 6H tank-mounted models are reference solutions for demanding applications and harsh operating conditions. These medium- to compact-sized piston compressors and vacuum pumps deliver compressed air or vacuum efficiently across a broad range of pressures and flow rates. The robust, oil-free construction includes corrosion-resistant internal components to ensure reliable performance and clean output air.

Key features
  • Oil-free construction: Delivers clean, contaminant-free compressed air for oil-sensitive processes
  • High-pressure capability: Suitable for sustained high-pressure operation
  • Tank-mounted: Available with tank sizes from 2 to 60 gallons

Technical specifications
  • Reference: 5HCD-10-M530X
  • Series: Piston
  • Type: Piston air compressors
  • HP: 0.75 (3/4 HP)
  • Voltage (60 Hz): 115/230 VAC
  • Phase: Single-phase
  • Open flow (60 Hz): 4.8 CFM (≈ 136 LPM)
  • Maximum pressure: 100 PSI (6.89 bar)
  • Amperage (60 Hz): 6.8/3.4 A
  • Weight: 40 lb / 18 kg
  • Sound level: 75 dBA
  • Mounting dimensions: 3 L x 4.88 W (76.2 mm x 124.0 mm as provided on datasheet)
  • Regulatory: CSA
  • Country of origin: UNITED STATES
  • Prop 65 notice: Products may contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
