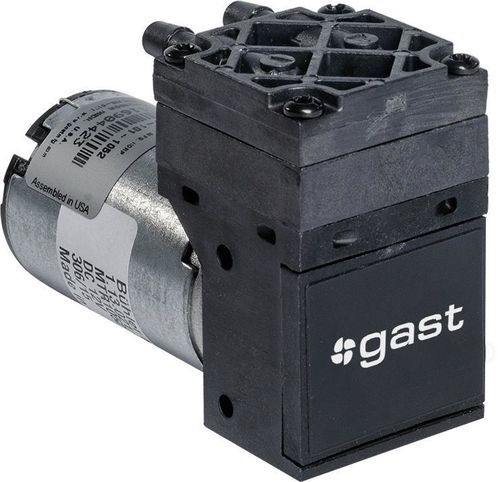

Diaphragm compressor Diaphragme

airDCstationary

Overview
The single-cylinder diaphragm compressor/pump 10D1126-401-7048B is an oil-free, sealed unit designed to deliver reliable pressure or vacuum with low noise and contaminant-free output. It is suitable for noise-sensitive environments and energy-efficient applications.

Technical summary and usage
Operates as either a compressor or vacuum pump. Models in the 10D, 15D and 22D ranges tolerate liquids and can run at low temperatures. Oil-free design and corrosion-resistant materials provide clean, dry air suitable for sensitive processes. Typical uses include medical devices, food & beverage systems, analytical instruments and environmental monitoring for precise fluid handling, sampling and measurement.

Key features

• Chemically resistant materials: high-performance thermoplastic (PPS) and synthetic rubber (EPDM) on wetted components.
• EMI suppression: protection for sensitive electronic circuits.
• Versatile operation: functions as compressor or pump; available in multi-frequency and multi-voltage variants for global use.
• Reliability: durable materials and components to minimize downtime and maintenance.

Applications
Well suited for medical equipment, analytical instruments, sampling devices, food & beverage systems and industrial applications that require precise control of flow and pressure.

Technical specifications

• Reference: 10D1126-401-7048B
• Series: Diaphragm
• Product type: Single-cylinder diaphragm compressors and pumps
• Power (HP): 0.01 HP
• Current: DC ≈ 0.3 A (see specification table)
• Flow (open): 0.12 CFM (DC) ≈ 3.4 LPM
• Voltage: variants available (e.g., 12 V DC; 24 V DC version referenced)
• Maximum pressure: 17 PSI (≈ 1.17 bar)
• Maximum vacuum: 17 in Hg
• Sound level: 55 dBA
• Weight: 0.34 lb
• Dimensions (standard): 2.64 L x 1.26 W x 2.11 H (in) — metric: 67.1 x 32.0 x 53.6 (mm)
• Mounting width: 0.96 in / 24.4 mm
• Regulatory: CE
• Country of origin: United States
