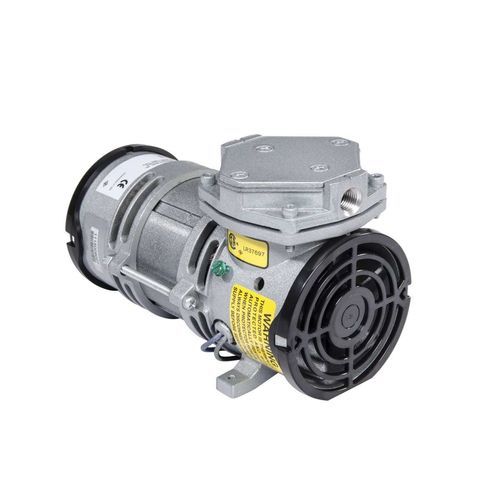

Diaphragm compressor MOA-P101-AA

airelectrically-poweredstationary

Summary
The MOA-P101-AA is a compact, lightweight diaphragm compressor designed for precise, low-noise operation and low power consumption. Suitable for noise‑sensitive environments and applications requiring leak‑tight, contaminant‑free pressure. MOA and MAA series are configured to operate as compressors or vacuum pumps, tolerate liquids and perform at low temperatures.

Applications

• Healthcare and medical devices
• Food and beverage
• Environmental monitoring, fluid sampling and measurement

Key features

• Chemically resistant materials: high‑performance thermoplastic polymer (PPS) and synthetic rubber (EPDM) for liquid‑wetted components.
• EMI suppression: protection for sensitive electronic components.
• Versatile operation: functions as a compressor or pump; available in bi‑frequency, shaded‑pole, PSC and multi‑voltage versions for global use.
• Reliability: durable materials and components reduce downtime and maintenance.

Additional product information
Series: Diaphragm
Description: Diaphragm compressors and pumps
Country of origin: United States

Technical specifications

• Model (commercial designation): MOA-P101-AA
• Power (HP): 0.06
• Amps (60 Hz): 2.1 A
• Weight: 2 kg (5.3 lb)
• Open flow (60 Hz): 0.5 CFM (14 L/min)
• Voltage (60 Hz): 115 V AC
• Maximum pressure: 50 PSI (3.45 bar)
• Flow at maximum pressure (60 Hz): 0.05 CFM (1.4 L/min)
• Sound level: 70 dBA
• Maximum vacuum: 24 in Hg
• Dimensions: 7.03 L x 4.27 W x 4.72 H (178.6 x 108.5 x 119.9 mm)
• Mounting dimensions: 4.09 L x 3.5 W (103.9 x 88.9 mm)
• Phase: Single‑phase
• Compliance / regulatory: cURus
