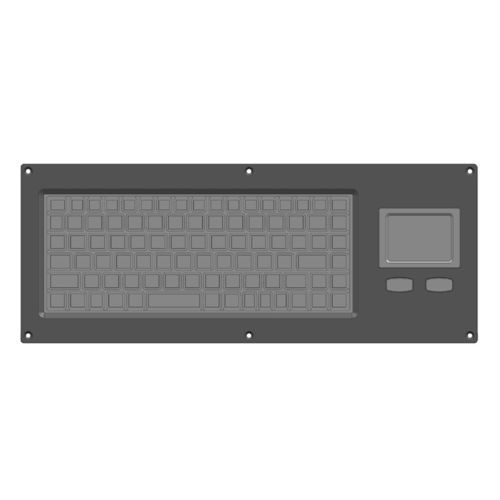

Panel-mount keyboard KH-SK89-MA90-420TP

carbon contactwith 2 mouse keys89-key

Product overview
The KH-SK89-MA90-420TP is an industrial, fully sealed silicone keyboard designed for panel mounting in harsh environments. It combines a full 89-key sealed silicone keypad with an integrated responsive touchpad to enable both reliable data entry and precise pointing in control rooms, HMI stations, medical interfaces and public kiosks.

Features

• 89-key sealed silicone keypad with adjustable backlight
• Integrated touchpad mouse for accurate pointing
• IP65-rated protection against water and dust
• Metal-panel mountable housing for secure installation
• Chemical-resistant, easy to clean surface for hygiene-critical sites
• USB plug-and-play interface, wide OS compatibility

Technical specifications

• Model: KH-SK89-MA90-420TP
• Dimensions: 420 x 165 mm
• IP rating: IP65 (waterproof and dustproof)
• Keypad: 89 sealed silicone keys, backlit
• Pointing device: Integrated touchpad
• Interface: USB (plug-and-play)
• Power: 5.0V DC ±5%
• Operating temperature: -40°C to +80°C
• Storage temperature: -45°C to +85°C
• Operating humidity: 30–95% RH
• OS Compatibility: Windows (all versions), Vista, Linux, Unix, Mac OS X, iOS, Android
• Reliability: MTBF > 50000 hours; MTTR < 30 minutes
• Warranty: 1-year limited warranty
• Certifications: CE / ROHS / FCC
