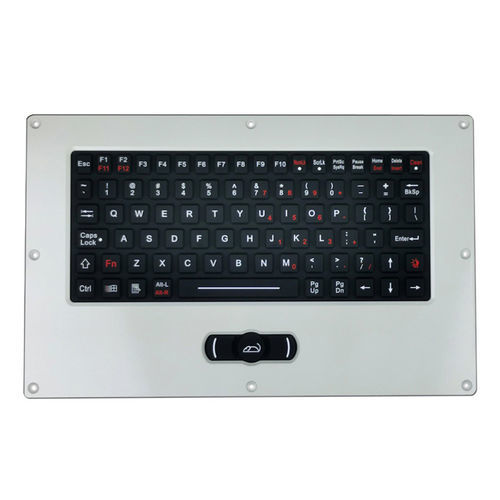

Panel-mount keyboard KH-SK83-336PM

carbon contactwith 2 mouse keys83-key

Overview
The KH-SK83-336PM is a sealed industrial keyboard with an ice‑grey high‑strength alloy front panel and an integrated pressure‑sensitive silicone (buttonless) mouse. It provides a fully sealed, easy‑to‑clean human‑machine interface for compact control panels and equipment used in demanding environments such as medical devices, laboratory instruments, cleanrooms and shipboard consoles.

Features

• Ice‑grey high‑strength alloy front panel
• Panel‑mounted design
• 83‑key sealed silicone keypad with backlight (including FN function keys)
• Integrated silicone pressure‑sensing (buttonless) mouse located below the keys for cursor control
• Standard USB interface (other interfaces optional)
• Customization and bespoke design available

Technical specifications

• Model: KH-SK83-336PM
• Front panel material: High‑strength alloy (ice grey)
• Key technology: Sealed backlit silicone keypad
• Pointing device: Integrated silicone pressure‑sensing mouse (buttonless)
• Mounting: Panel‑mounted
• Interface: USB standard; other interfaces optional
• Power: 5.0V DC ±5%
• Dimensions: 336 x 210 mm
• Operating temperature: -40°C to +80°C; Storage: -45°C to +85°C
• Operating humidity: 30–95% RH
• Reliability: MTBF > 50,000 hours; MTTR < 30 minutes
• Warranty: 1‑year limited warranty

Applications
Ideal for sealed, hygienic or rugged environments requiring a sealed human‑machine interface: medical and laboratory equipment, cleanrooms, marine and shipboard consoles, vehicle‑mounted control panels and industrial automation panels.
