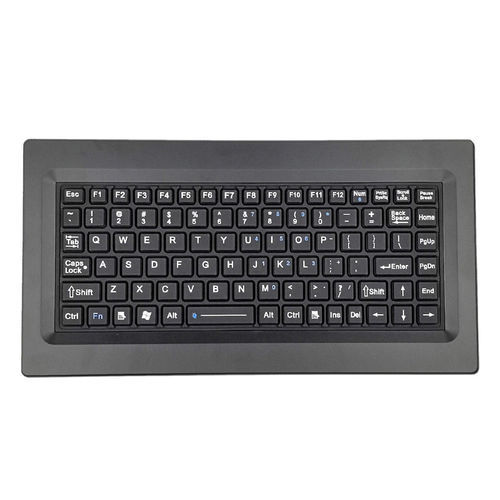

Panel-mount keyboard KH-SK89-330

carbon contact89-keywith Fn key

Overview
The KH-SK89-330 is a full-size sealed keyboard engineered for demanding industrial environments where hygiene, chemical resistance and liquid protection are essential. A unibody sealed silicone keypad covers all 89 keys to provide a seamless, waterproof and easy-to-clean surface. The keypad is mounted in a high-strength, titanium-black alloy panel that removes gaps where contaminants can accumulate, ensuring durability and reliable operation under continuous use.

Suitable for pharmaceutical production, food & beverage processing, chemical laboratories, cleanrooms, maritime, military and outdoor installations exposed to moisture.

Features

• Sealed unibody silicone keypad with 89 keys
• 89 silicone keys with backlighting (including FN function keys)
• High-strength titanium-black alloy panel for impact and environmental resistance
• Panel-mounted installation options
• Multiple interface options (USB standard, other interfaces optional)
• Customizable layouts and special function configurations available

Technical specifications

• Dimensions: 330 × 172 mm
• Keys: 89 backlit keys (including FN function keys)
• Type: Silicone keys with metal panel
• Connector: USB
• Power supply: 5.0 V DC ±5%
• OS compatibility: All Windows versions, Vista / Linux / Unix / Mac OS X / iOS / Android
• Temperature range: Storage -45°C to +85°C; Operating -40°C to +80°C
• Humidity: 30–95% RH (operating)
• MTBF: > 50000H
• MTTR: < 30 min
• Warranty: 1-year limited warranty
