Console keyboard KH-K86-345-FX101

with mechanical keys86-keymarine

Product Detail

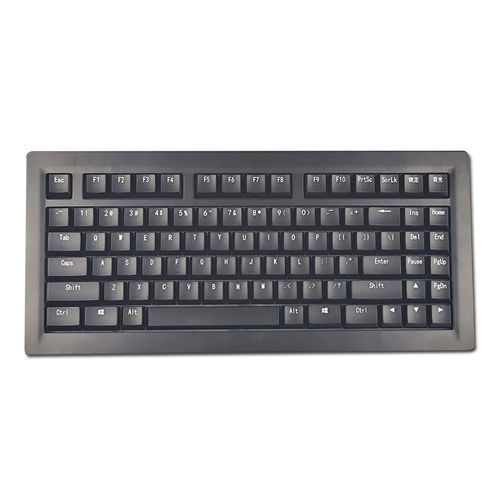

The KH-K86-345-FX101 is a 3rd-generation rotating mechanical keyboard engineered for shipboard and industrial console integration. It features 86 KH black-axis mechanical backlit keys, a precision rotating and locking mount, and a titanium-black high-strength alloy front panel and housing. The front/surface protection rating is IP54, providing resistance to dust, water spray, salt fog and high humidity. Operating temperature range is -40°C to +80°C and switch life exceeds 50 million actuations per key. Interfaces include USB with flexible/custom interface options. Dimensions: 345 × 157 × 35 mm. Certifications: CE / ROHS / FCC. Place of Origin: China. OEM/ODM customization is available for keymap, interfaces and mounting.

Features

• 86 mechanical KH black-axis switches (backlit)
• 3rd-generation rotating and locking mount for shipboard installation
• Titanium-black high-strength alloy front panel and housing
• IP54 front/surface protection: dust, water spray, salt fog and high humidity resistant
• Vibration resistance suitable for marine and industrial environments
• Wide operating temperature: -40°C to +80°C
• Switch life > 50 million keystrokes per key
• USB standard and configurable/custom interface options
• Designed for shipboard consoles, bridge systems, offshore platforms, control rooms, industrial automation, kiosks, security and medical applications

Specifications
Dimensions: 345 × 157 × 35 mm
Keys: 86 backlit keys, KH black-axis mechanical switches
Front Panel Material: Titanium-black high-strength alloy
Connector: USB or configurable interfaces on request
Operating Force: 3N–5N (glove operation supported)
OS Compatibility: Windows (all versions), Linux, Unix, Mac OS X, iOS, Android
Temperature Range: Storage -45°C to 85°C; Operating -40°C to +80°C
Protection Level: IP54 (front/surface)
MTBF: > 50000 H
MTTR: < 30–60 min
Warranty: 1-year limited warranty

Characteristics / Technical specifications

• Model: KH-K86-345-FX101
• Form factor: 86-key mechanical keyboard with rotating and locking mount
• Housing: High-strength alloy, titanium-black finish
• Protection: IP54 front/surface (dust, water spray, salt fog, humidity)
• Environmental: Vibration resistance; operating temperature -40°C to +80°C
• Switches: KH black-axis mechanical switches, backlit, >50 million cycles
• Interfaces: USB standard; other interfaces available on request
• Customization: OEM/ODM options for keymap, interfaces, mounting and sealing
• Intended use: Marine (shipboard/bridge), offshore, military vehicle-mount, industrial automation, control rooms, kiosks, security and medical systems
