Panel-mount keyboard KH-SK83-M25-390

carbon contactwith 3 mouse keys83-key

Product overview

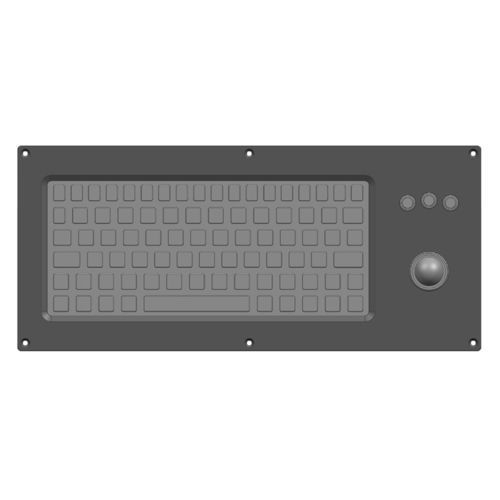

The KH-SK83-M25-390 is an industrial 83-key IP65-sealed keyboard with a fully integrated small trackball. It combines a seamless silicone keypad mounted on a metal panel and a compact pointing device in a single rugged unit for use in confined or harsh environments. Typical applications include control panels, mobile equipment consoles, medical carts, marine and vehicle consoles. Place of origin: China. Brand: CNKHTECH. Certifications: CE / RoHS / FCC.

Features

• Compact 83-key layout to minimize panel footprint
• IP65-sealed seamless silicone keypad providing protection against liquids, dust and contaminants
• Integrated small trackball for precise cursor control without separate pointing devices
• Metal alloy frame for mechanical strength in demanding installations
• Backlit keys for operation in low-light conditions
• Easy-to-clean surface; chemical- and liquid-resistant
• Multiple interface options (standard USB; other interfaces available on request)
• Customizable key layouts and legends to suit application-specific requirements

Specifications
Model: KH-SK83-M25-390
Dimensions: 390 x 173 mm
Keys: 83 backlit keys (including FN/function keys)
Key type: Silicone keys on metal panel
Pointing device: Integrated small trackball
Connector: USB (other interfaces optional)
Power supply: 5.0V DC ±5%
OS compatibility: Windows (all versions), Vista, Linux, Unix, Mac OS X, iOS, Android
Operating temperature: -25°C to +80°C
Storage temperature: -30°C to +85°C
Operating humidity: 30–95% RH
Protection rating: IP65 (sealed against dust and water)

Technical data
MTBF: > 50,000 hours
MTTR: < 30 minutes
Material: Silicone keypad, metal alloy frame
Place of origin: China
Certifications: CE / RoHS / FCC
Warranty: 1-year limited warranty
