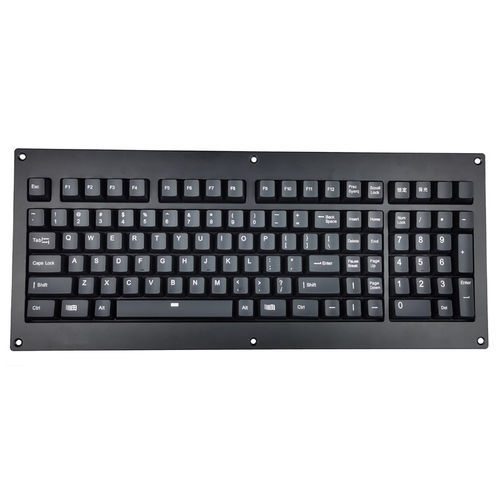

Panel-mount keyboard KH-K107-418

with mechanical keys107-keymarine

Overview
The KH-K107-418 Marine shipboard ruggedized keyboard pairs mechanical black-axis switches with night-vision-compatible backlighting in a sealed, metal-top design for extreme marine and industrial environments. Designed for shipboard workstations, radar and bridge consoles, vehicle-mounted systems, power plants and aerospace applications.

Features

• Mechanical black-axis switches engineered for consistent actuation and long life
• Adjustable backlighting suitable for low-light and night-vision operations
• Full-size 107-key layout with numeric keypad and FN function keys
• Rugged sealed construction: metal top panel and ABS keycaps for corrosion and splash resistance
• Multiple interface options: USB, PS/2 or custom configurations

Specifications

• Dimensions: 418 x 172 x 43 mm
• Keys: 107 backlit keys (including FN keys)
• Key Switch: Mechanical black-axis (2.00 mm travel)
• Interface: USB, PS/2 or others
• Top Panel: Metal construction
• Power Supply: 5.0V DC ±5%
• OS Compatibility: Windows (all versions), Vista, Linux/Unix, Mac OS X, iOS, Android
• Temperature Range: Storage: -45°C to +86°C
• Operating: -40°C to +80°C
• Humidity: 30–95% RH (operating)
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty

Technical specifications

• Model: KH-K107-418
• Brand: CNKHTECH
• Place of Origin: China
• Certifications: CE, ROHS, FCC
• Dimensions: 418 x 172 x 43 mm
• Number of keys: 107 (backlit, incl. FN keys)
• Key travel: 2.00 mm
• Top panel material: Metal
• Keycaps: ABS
• Interfaces: USB, PS/2 or others
• Power supply: 5.0V DC ±5%
• Operating temperature: -40°C to +80°C
• Storage temperature: -45°C to +86°C
• Operating humidity: 30–95% RH
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty
