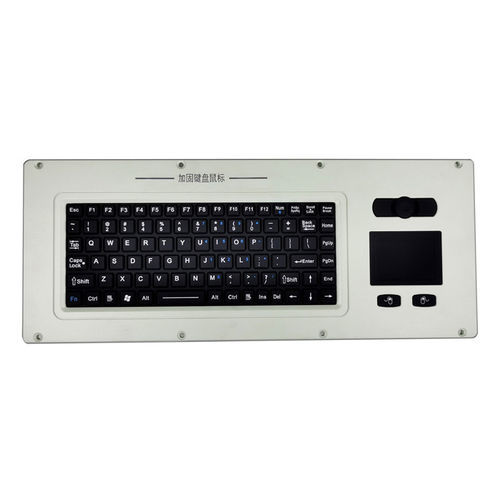

Panel-mount keyboard KH-V35M-J89011

carbon contact89-keywith Fn key

Product Details
The KH-V35M-J89011 is an industrial keyboard in an ice grey high-strength alloy housing featuring an 89-key backlit sealed silicone keypad, an integrated touchpad and a pressure-sensitive mouse. It provides multiple cursor-control options and sealed protection for use in demanding control panels and workstations across medical, industrial, marine and public facility environments.

Features

• High-strength alloy construction in ice grey.
• 89-key sealed silicone keypad with backlit keys (including FN keys).
• IP65 protection level — sealed and easy to clean.
• Integrated touchpad for cursor control.
• Integrated pressure-sensitive mouse as alternative cursor input.
• USB interface (other connector options available).
• Supports customization for specific layouts and functions.

Applications
Designed for control panels and workstations in medical, industrial, marine and public facility sectors where sealed input devices with multiple cursor-control options are required.

Technical Specifications

• Model / Reference: KH-V35M-J89011
• Brand: CNKHTECH
• Place of Origin: China
• Certifications: CE / ROHS / FCC
• Dimensions: 464 x 182 mm
• Keys: 89 backlit keys (including FN functional keys)
• Type: Sealed silicone keys with metal panel
• Connector: USB (options available)
• Power Supply: 5.0V DC ±5%
• OS Compatibility: All Windows versions, Vista, Linux, Unix, Mac OSX, iOS, Android
• Protection Level: IP65
• Temperature Range: Storage -30°C to +85°C; Operating -25°C to +80°C
• Humidity: 30–95% RH (operating)
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty
