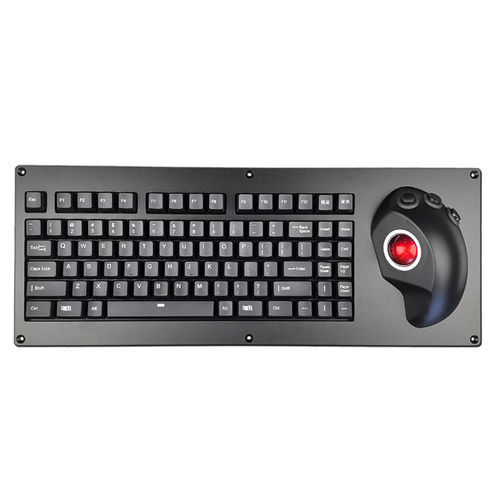

Rack-mount keyboard KH-K86-TBV3-445

panel-mountwith mechanical keys86-key

Product overview
The KH-K86-TBV3-445 is a panel-mount trackball keyboard designed for mission-critical input in vibration- and shock-prone environments. It features an upgraded ergonomic anti-vibration trackball with optimized tactile buttons and an improved ball seating mechanism to maintain precise cursor control under extreme conditions. The front panel is a high-strength titanium black alloy with LED backlit keys, suitable for military, marine and industrial control consoles.

Applications
Suitable for integration into military vehicle control panels (armored vehicles, command trucks), shipboard consoles, portable field communication units and ground support equipment where secure panel mounting, reliable backlit input and anti-vibration performance are required.

Key features

• Upgraded ergonomic anti-vibration trackball with improved tactile buttons
• Titanium black high-strength alloy front panel
• 86 backlit keys including FN function keys
• Mechanical key switches, 2.00 mm travel
• Wide operating temperature range and high humidity tolerance
• Panel-mount form factor for secure installation
• USB interface; other interfaces available on request
• Optional customised designs

Technical specifications

• Model: KH-K86-TBV3-445
• Dimensions: 445 x 172 mm
• Key count: 86 backlit keys (including FN)
• Switch type: Mechanical, 2.00 mm travel
• Connector: USB (other options on request)
• Power supply: 5.0 V DC ±5%
• OS compatibility: Windows, Linux, Unix, Mac OS X, iOS, Android
• Temperature range: Storage -45°C to +90°C; Operating -40°C to +80°C
• Humidity (operating): 30–95% RH
• Reliability: MTBF > 50,000 h; MTTR < 30 min
• Warranty: 1-year limited warranty
