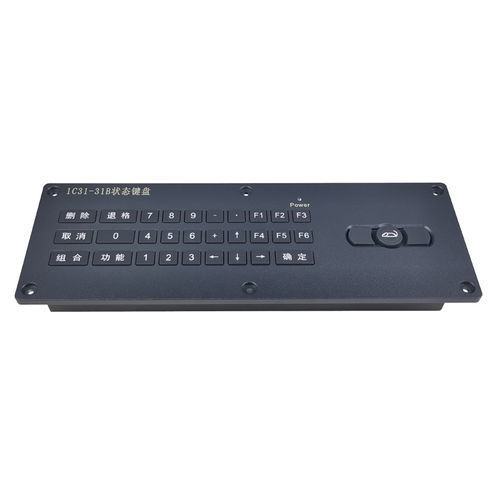

Panel-mount keyboard KH-RK30-350PM

membrane29-keyswith mouse

Product Overview
The KH-RK30-350PM is an ultra-compact, sealed input panel combining a 29-key backlit silicone keypad with an integrated pressure-sensitive silicone pointing device. The sealed, no-moving-parts mouse provides hygienic, reliable cursor control while the titanium black high-strength alloy front panel enables secure, panel-mounted installation in space-critical environments.

Applications

• Industrial machine and HMI integration
• Laboratory and analytical instruments
• Food & beverage processing control panels
• Pharmaceutical cleanrooms and sterile environments
• Chemical processing control stations
• Any compact computer input environment requiring IP65 sealing and hygienic operation

Features

• Integrated pressure-sensitive silicone mouse embedded within the keypad area — no moving parts
• Ultra-compact 29-key sealed silicone keypad with optional backlight
• Rugged panel-mount construction with titanium black, high-strength alloy front panel
• Designed for secure panel-mounted installation in confined spaces
• USB interface standard; other interfaces available on request
• Customizable key layouts and functional options to suit application requirements

Specifications
Model: KH-RK30-350PM
Dimensions: 350 x 122mm
Keys: 29 backlit keys
Type: Silicone keys with metal panel
Connector: USB
Power Supply: 5.0V DC ±5%
OS Compatibility: All Windows versions, Vista/Linux/Unix/Mac OSX/iOS/Android
Temperature Range: Storage: -45°C to +90°C; Operating: -40°C to +80°C
Humidity: 30–95% RH (operating)
MTBF: > 50000H
MTTR: < 30min
Warranty: 1-year limited warranty
