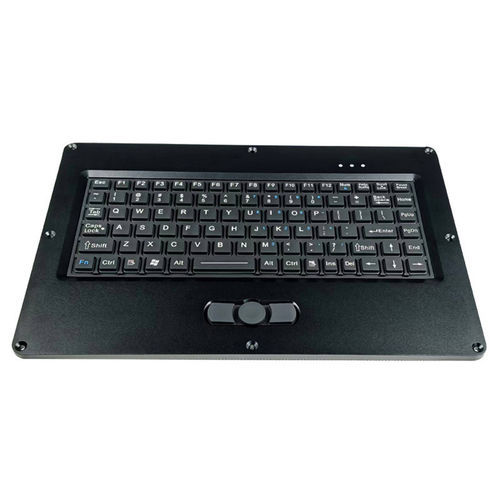

Panel-mount keyboard KH-K89-M76-336

carbon contact89-keywith mouse

Product overview
Compact industrial keyboard combining an electro-black aluminum front panel and a sealed silicone keypad. Integrates a KH-M76 series Force Sensing Resistor (FSR) pointing device for precise cursor control without moving parts. Provides 89 keys with dedicated FN functions and panel-mount installation for space-constrained control stations.
Place of Origin: China.
Brand: CNKHTECH.
Certification: CE / ROHS / FCC.
Model Number: KH-K89-M76-336.

Features

• 89-key silicone keypad with dedicated FN function keys
• Integrated KH-M76 series Force Sensing Resistor (FSR) pointing device — no moving parts
• Electro-black aluminum front panel with mounting holes for panel installation
• Compact, space-saving design suitable for control panels and consoles
• USB interface standard; other interface options available on request
• Customizable key layout and legends for application-specific configurations

Applications
Designed for industrial control panels, military consoles, mobile workstations, kiosks and other environments requiring a sealed, panel-mounted input unit with reliable, maintenance-free cursor control.

Technical specifications

• Dimensions: 336 x 224 x 33 mm
• Keys: 89 silicone backlit keys with FN functions
• Pointing device: Force Sensing Resistor (KH-M76 series)
• Connector: USB (other interfaces available)
• Power supply: 5.0V DC ±5%
• OS compatibility: Windows (all versions), Vista, Linux, Unix, Mac OS X, iOS, Android
• Temperature range: Storage -45°C to +85°C; Operating -40°C to +80°C
• Protection: IP65 (front)
• Humidity: 30–95% RH (operating)
• MTBF: > 50000 h
• MTTR: < 30 min
• Warranty: 1-year limited warranty
