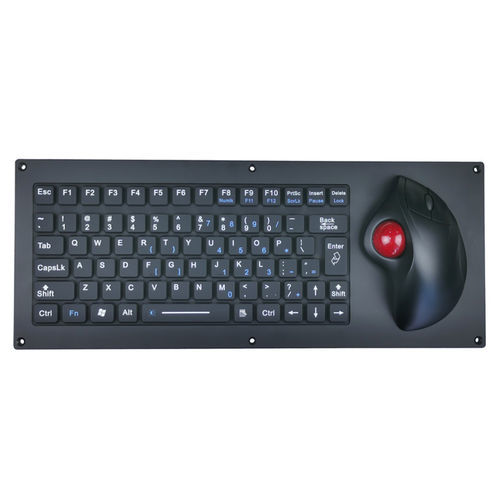

Panel-mount keyboard KH-SK75-TPV1-439

carbon contactwith 3 mouse keyswith Fn key

Summary
The KH-SK75-TPV1-439 is a sealed 75-key silicone rubber keyboard with an integrated ergonomic trackball, designed for compact control panels and operator stations in harsh industrial environments. It provides IP65 protection, chemical resistance and a high-strength alloy housing for long-term field use where precise pointing and space efficiency are required.

Features

• Compact 75-key silicone rubber keypad with adjustable backlight
• Integrated ergonomic trackball for precise cursor control
• IP65-rated sealed construction: dustproof and water-resistant
• High-strength alloy housing resistant to corrosion and impact
• Chemical- and liquid-resistant surface for easy cleaning
• USB interface, plug-and-play connectivity

Technical characteristics / Specifications

• Model: KH-SK75-TPV1-439
• Dimensions: 439 x 173 mm
• 75 silicone backlit keys including FN function keys
• Integrated ergonomic trackball pointing device
• IP65 sealed construction for dust and water protection
• Housing: high-strength alloy (corrosion and impact resistant)
• Connector: USB (plug and play)
• Power: 5.0 V DC ±5%
• Operating temperature: -25°C to +80°C; Storage temperature: -30°C to +85°C
• Operating humidity: 30–95% RH
• MTBF: > 50,000 hours; MTTR: < 30 minutes
• Warranty: 1-year limited warranty
