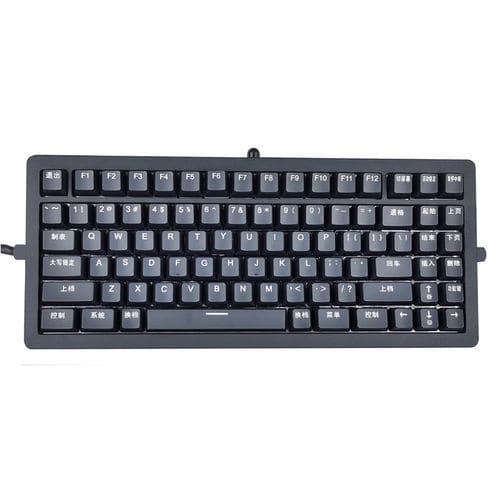

Desktop keyboard KH-K86-350

rack-mountconsolewith mechanical keys

Overview
The KH-K86-350 is an ultra-compact, rotating keyboard engineered for integration into space-critical military and marine platforms. It features a space-optimized rotating base with a compact 86-key layout designed for reliable use in confined naval and military environments. Typical installations include armored vehicle crew stations, naval vessel CIC auxiliary consoles, helicopter avionics bays and submarine control rooms where an adjustable, space-saving input device is required.

Features

• Space-saving rotation mechanism integrated with a compact 86-key layout.
• High-strength alloy front panel with titanium black finish.
• Backlit compact key layout.
• Mechanical key switches with 2.00 mm travel for tactile feedback.
• Customization options to meet specific integration requirements.
• Wide operating and storage temperature ranges for extreme environments.

Intended Applications

• Armored vehicle crew stations
• Naval vessel Combat Information Center (CIC) auxiliary consoles
• Helicopter avionics bays
• Submarine control rooms
• Other space-constrained military and marine platforms

Technical specifications

• Model: KH-K86-350
• Brand: CNKHTECH
• Place of Origin: China
• Certifications: CE / ROHS / FCC
• Dimensions: 334 x 142 x 28 mm
• Keys: 87 backlit keys (including FN keys)
• Switch Type: Mechanical switches (2.00 mm travel)
• Connector: USB, PS/2 or others
• Power: 5.0V DC ±5%
• OS Compatibility: Windows, Vista, Linux, Unix, Mac OSX, iOS, Android
• Storage Temperature: -45°C to +90°C
• Operating Temperature: -40°C to +80°C
• Operating Humidity: 30–95% RH
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty
