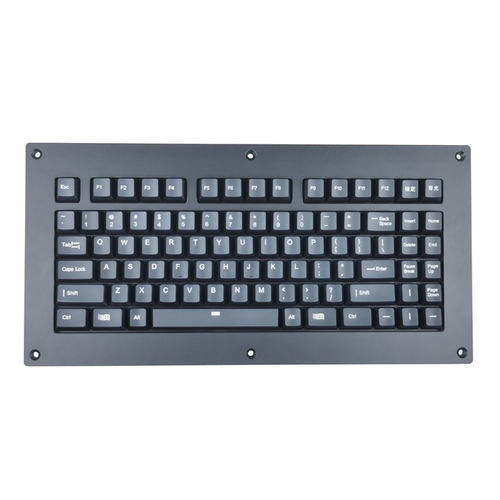

Panel-mount keyboard KH-K86-360

with mechanical keys86-keyfor robotics

Overview
The KH-K86-360 is a compact panel-mount keyboard engineered for integration into defense, marine and industrial control systems. It offers high environmental tolerance and durability in a dedicated keyboard form factor. By omitting an integrated mouse, the unit supports flexible pairing with external trackballs, joysticks or touchpads already present on the console, helping to optimize workspace and modular input architectures.

Ideal applications
military vehicle consoles, naval combat information centers, ship bridge auxiliary stations and industrial control panels where a high-performance, environment-proof keyboard is required to complement existing pointing solutions.

Features

• Keyboard without an integrated mouse device for modular input setups.
• High-strength black titanium alloy front/top panel.
• 86 backlit mechanical keys (including FN function keys) with 2.00 mm switch travel.
• USB interface (other interfaces available on request).

Technical specifications

• Model: KH-K86-360
• Brand: CNKHTECH
• Place of Origin: China
• Dimensions: 360 × 172 × 42 mm
• Key count: 86 backlit mechanical keys (includes FN keys)
• Switch travel: 2.00 mm (mechanical)
• Interface: USB (other interfaces optional)
• Top panel material: High-strength black titanium alloy / metal construction
• Power: 5.0V DC ±5%
• OS support: Windows (all versions), Vista, Linux, Unix, Mac OSX, iOS, Android
• Operating temperature: -25°C to +80°C; Storage: -40°C to +80°C
• Operating humidity: 30–95% RH
• MTBF: >50000 hours; MTTR:
• Warranty: 1-year limited
• Certifications: CE / ROHS / FCC
