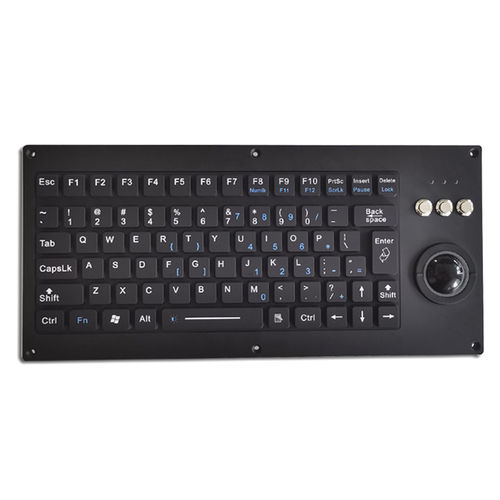

Panel-mount keyboard KH-SK75-M38-373

carbon contactwith 3 mouse keyswith Fn key

Overview
The KH-SK75-M38-373 is a rugged, dynamically sealed mounted keyboard with an integrated high-durability M38 resin trackball. Housed in a high-strength aluminum alloy shell with an IP65-rated silicone keypad, it delivers reliable input and precise cursor control for mobile and stationary equipment operating in harsh, corrosive or dust-prone environments.
Typical installations include vehicle consoles, marine decks, industrial control panels and heavy machinery interfaces.

Features

• IP65 dynamically fully-sealed silicone integrated keyboard
• Integrated M38 resin trackball mouse (IP65 rated)
• Night-vision compatible backlight function
• High-strength aluminum alloy shell
• Wear-resistant and antibacterial polymer silicone key surface
• Designed for large-hand operation
• Meets salt spray test standards

Applications
Built for corrosive, mobile and industrial environments where durability and reliable cursor control are required: vehicle-mounted systems, marine and fleet consoles, military and defense equipment, construction and heavy machinery control panels, transportation and energy sector installations.

Technical characteristics / specifications

• Model number: KH-SK75-M38-373、
• Dimensions: 373 x 73 mm
• Brand: CNKHTECH
• Ingress protection: IP65 (dynamically sealed silicone keyboard and trackball)
• Trackball type: M38 resin trackball (high-durability)
• Housing: High-strength aluminum alloy shell
• Key surface: Wear-resistant, antibacterial polymer silicone
• Key count: 75 backlit silicone keys
• Connector: USB
• Power: 5.0V DC ±5%
• OS support: Windows (all versions), Vista, Linux, Unix, Mac OSX, iOS, Android
• Storage temperature: -45°C to +85°C
• Operating temperature: -40°C to +80°C
• Operating humidity: 30–95% RH
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty
• Certifications mentioned: CE, RoHS, FCC
• Place of origin: China
