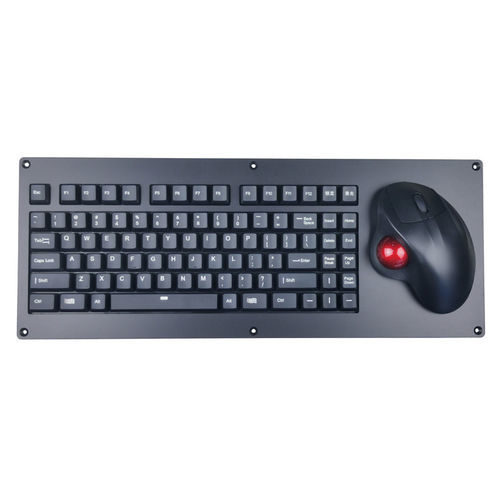

Panel-mount keyboard KH-K86-TBV2-445

with mechanical keys86-keywith Fn key

Product overview
The KH-K86-TBV2-445 is a compact keyboard designed for military and marine applications. It features a titanium black alloy top panel, 86 self-developed backlit mechanical keys and an integrated ergonomic trackball for precise pointing in confined or mobile installations. Industrial USB connectivity and wide operating temperature make it suitable for vibration- and shock-prone environments.

Features

• Wide operating temperature range and environmental tolerance for military/marine use.
• Titanium black alloy front/top panel for mechanical strength and corrosion resistance.
• Integrated ergonomic trackball for precise cursor control in confined spaces or on consoles.
• 86 backlit keys with self-developed mechanical switches (including FN function keys) for tactile feedback and low-light operation.
• Secure integration via USB industrial connector designed for vibration- and shock-resistant installations.

Typical applications

• Military vehicle consoles
• Naval vessel control consoles and ship bridges
• Offshore platform and maritime control systems
• Other maritime and defense equipment requiring compact, durable input devices

Technical specifications

• Model: KH-K86-TBV2-445
• Dimensions: 445 × 172 × 42 mm
• Keys: 86 backlit keys (including FN function keys)
• Key switch: Mechanical switches (2.00 mm travel)
• Connector: USB (industrial)
• Top panel: Metal construction (titanium black alloy)
• Power supply: 5.0 V DC ±5%
• OS compatibility: All Windows versions, Vista / Linux / Unix / Mac OSX / iOS / Android
• Temperature range: Storage: -40°C to +80°C; Operating: -25°C to +80°C
• Humidity: 30–95% RH (operating)
• MTBF: > 50000 H
• MTTR: < 30 min
• Warranty: 1-year limited warranty
