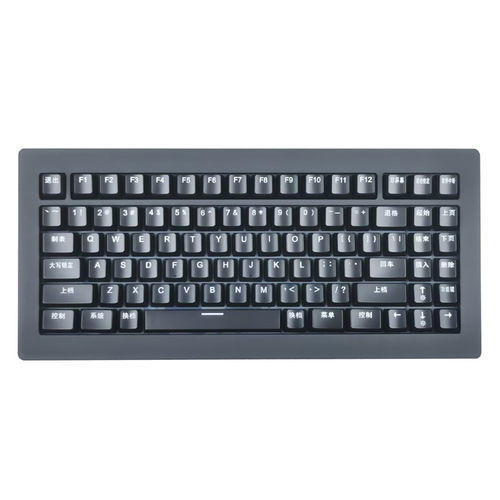

Panel-mount keyboard KH-K87-345-V3

with mechanical keys87-keyfor the automotive industry

Overview
The KH-K87-345-V3 is a third-generation rotating ruggedized keyboard designed for military and marine onboard use. It features a rotating and locking base for adjustable positioning, a titanium black high-strength alloy front panel and 87 backlit mechanical keys, providing reliable input across a wide operational temperature range and in confined vessel or vehicle installations.

Applications

• Military vehicle consoles
• Naval vessel command stations
• Ship bridge workstations and helm consoles
• Helicopter and fixed‑wing aircraft cabins
• Mobile or fixed deployments with limited space requiring rugged, adjustable input devices

Features

• Gen 3 rotating ruggedized base with robust rotating and locking mechanism for secure positioning
• 87 backlit keys with black mechanical switches (2.00 mm travel)
• Titanium black high-strength alloy front panel
• Designed for reliable performance across a wide spectrum of harsh operational temperatures
• Interface options: USB (other interfaces available on request)
• Compatibility: Windows, Linux, Unix, Mac OS X, iOS, Android

Specifications

• Dimensions: 345 x 157 × 35 mm
• Keys: 87 backlit keys (including FN functional keys)
• Key switch: Mechanical switches (2.00 mm travel)
• Connector: USB
• Power supply: 5.0V DC ±5%
• Temperature range: Storage -45°C to +90°C; Operating -40°C to +80°C
• Humidity: 30–95% RH (operating)
• MTBF: > 50000H
• MTTR: < 30 min
• Warranty: 1-year limited warranty
• Place of origin: China
• Certifications: CE / ROHS / FCC
• Brand: CNKHTECH
• Model number: KH-K87-345-V3
