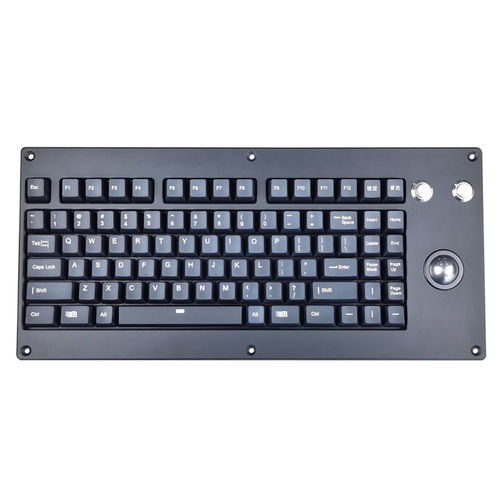

Panel-mount keyboard KH-K86-383

with mechanical keys86-keywith 2 mouse keys

Product Overview
The KH-K86-383 is a compact keyboard designed for precise cursor control in military and marine environments. It integrates a sealed 25 mm waterproof trackball to ensure accurate input during vibration, gloved operation or confined-space use. The front panel uses a titanium black high‑strength alloy and the product is specified for wide temperature ranges to support mission‑critical installations.

Features

• Integrated sealed 25 mm waterproof trackball with rotating and locking mechanism for secure operation.
• Titanium black high‑strength alloy front panel for corrosion resistance in maritime environments.
• Designed for reliable operation across a wide temperature spectrum.
• Backlit mechanical key switches with 2.00 mm travel; self-developed key design for tactile feedback.
• USB connector; alternative interface options available on request.
• Customization options for layout and mounting available.

Applications
Suitable for vehicle command consoles, naval vessel command stations, ship bridge workstations, helicopter and aircraft cabins, and mobile or fixed control stations where compact, sealed and precise pointing input is required.

Technical specifications

• Model: KH-K86-383
• Dimensions: 383 x 172 × 42 mm
• Trackball: Sealed 25 mm waterproof trackball integrated with the keyboard
• Housing: Titanium black, high‑strength alloy front panel
• Key count & type: 87 backlit mechanical keys (including FN keys)
• Switch travel: 2.00 mm (mechanical switches)
• Connector: USB (other interfaces optional)
• Power: 5.0 V DC ±5%
• Operating temperature: -40°C to +80°C; Storage temperature: -45°C to +90°C
• Operating humidity: 30–95% RH
• MTBF: > 50,000 hours; MTTR: < 30 minutes
• Highlight: Rotating and locking mechanism for secure trackball operation
• Warranty: 1-year limited warranty
• Certifications: CE / ROHS / FCC
• Place of Origin: China
