Panel-mount keyboard KH-SK63-TB-330

carbon contact65-keywith Fn key

Product Overview

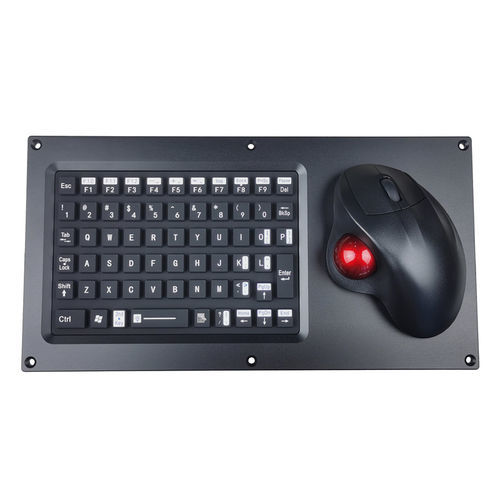

The KH-SK63-TB-330 is a compact, sealed panel-mount keyboard combining a 63-key silicone keypad with an integrated ergonomic trackball in a single titanium-black unit.

It is designed for control panels and equipment where space is limited and ingress protection is required, such as military vehicle consoles, shipboard auxiliary stations, medical carts, compact industrial machines and portable test instruments.

Features

• Compact 63-key sealed silicone keypad with backlight
• Integrated ergonomic trackball for precise cursor control
• IP65-rated protection against water and dust
• Titanium black high-strength alloy front panel
• Easy-to-clean, chemical-resistant surface
• Optional interfaces: USB and other interfaces available
• Supports customization of functional layouts and key legends

Specifications
Dimensions: 330 x 172 mm
Keys: 63 backlit keys (including FN function keys)
Type: Silicone keys with metal front panel
Connector: USB (other interfaces optional)
Power Supply: 5.0V DC ±5%
OS Compatibility: All Windows versions, Vista / Linux / Unix / Mac OS X / iOS / Android
Temperature Range: Storage: -30°C to +85°C; Operating: -25°C to +80°C
Humidity: 30–95% RH (operating)
MTBF: > 50,000 H
MTTR: < 30 min
Warranty: 1-year limited warranty
Customization: Supports custom functional layouts and interface options
